Components [08/2015 - 08/2017]

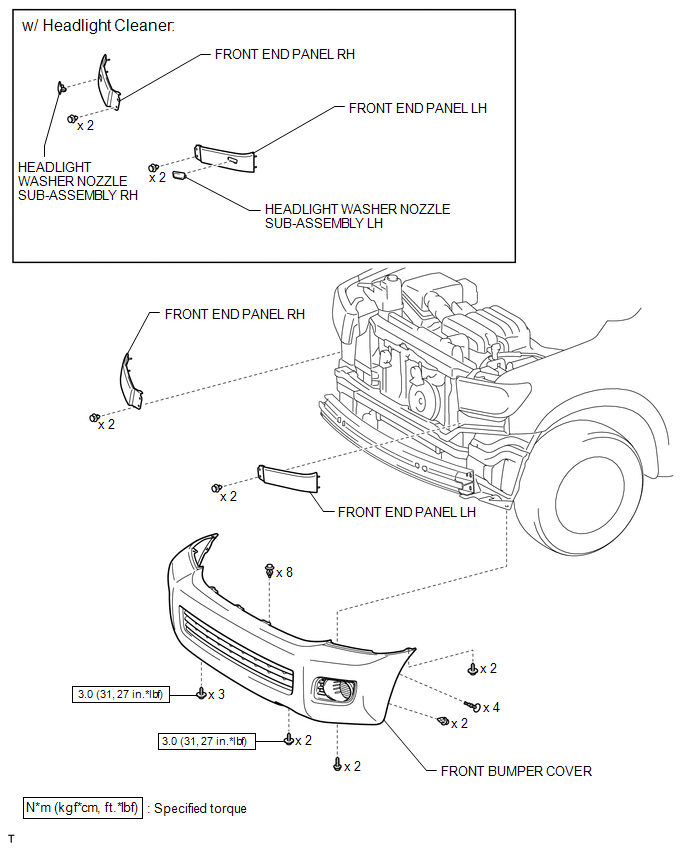

Fig 1: Front Bumper Replacement Components With Torque Specifications [08/2015 - 08/2017] (1 Of 6)
GTY564173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

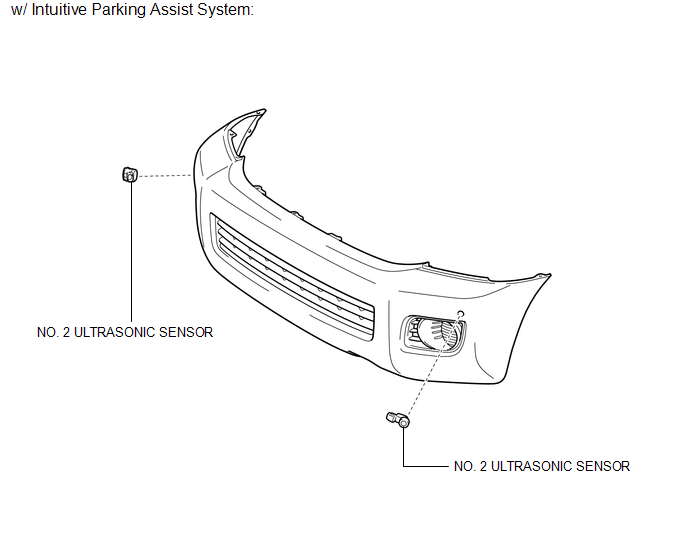

Fig 2: Front Bumper Replacement Components [08/2015 - 08/2017] (2 Of 6)
GTY591037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

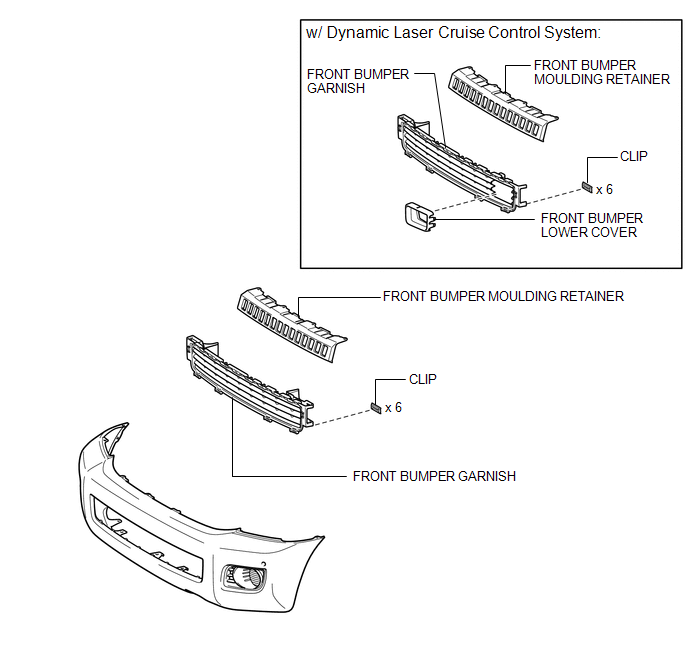

Fig 3: Front Bumper Replacement Components [08/2015 - 08/2017](3 Of 6)
GTY600934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

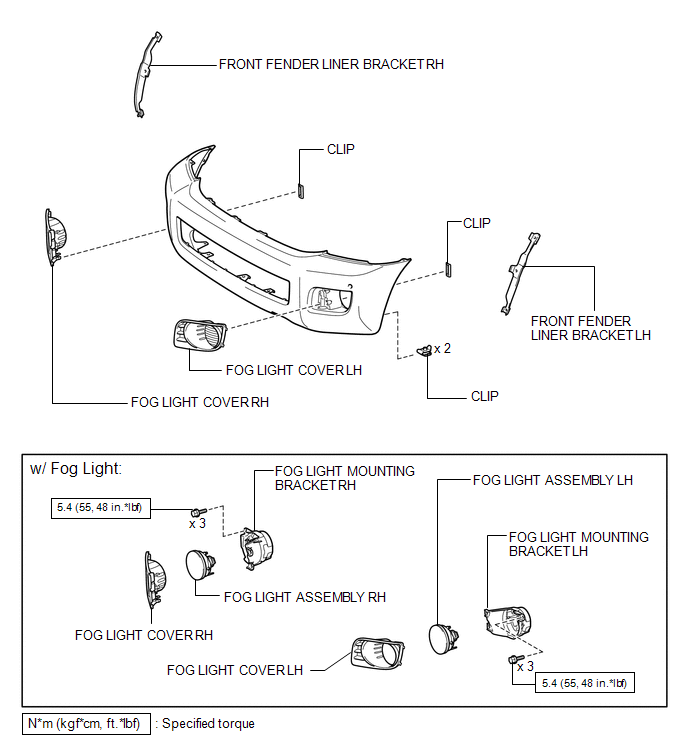

Fig 4: Front Bumper Replacement Components With Torque Specifications [08/2015 - 08/2017] (4 Of 6)
GTY576235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

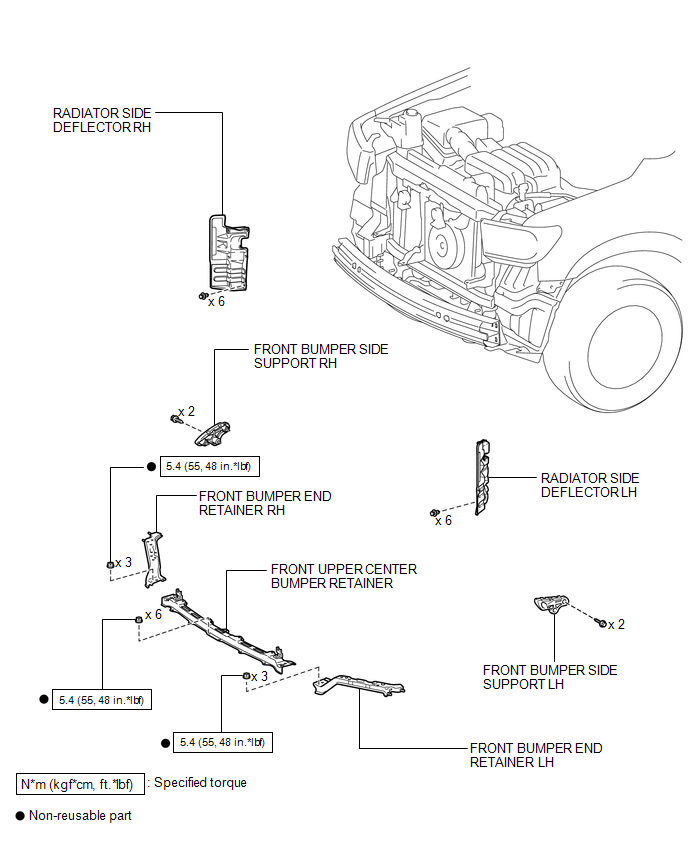

Fig 5: Front Bumper Replacement Components With Torque Specifications [08/2015 - 08/2017] (5 Of 6)
GTY586823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

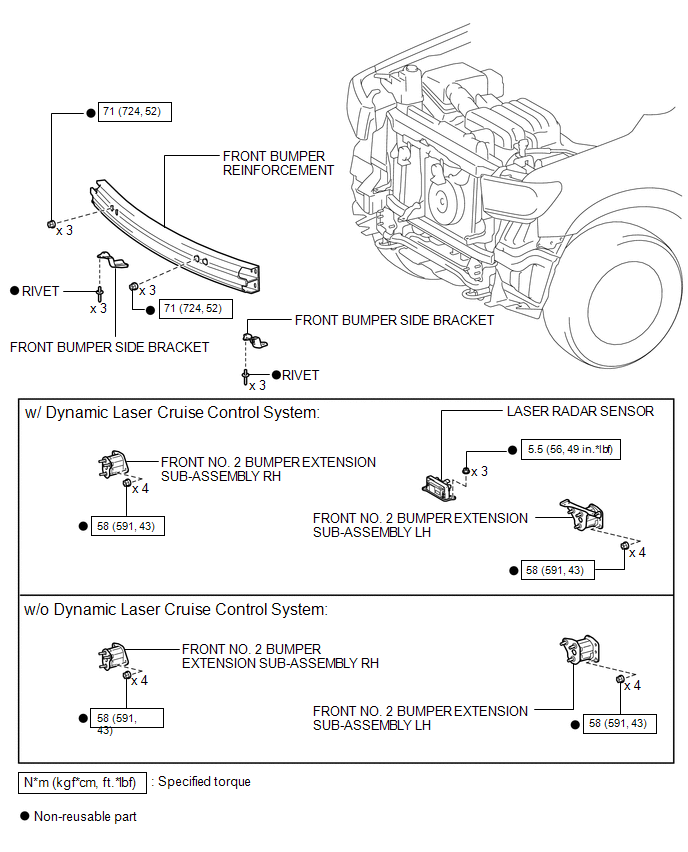

Fig 6: Front Bumper Replacement Components With Torque Specifications [08/2015 - 08/2017] (6 Of 6)
GTY547232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
