Display Signal Circuit between Video Terminal and Television Display [08/2015 - 08/2019]: Procedure

1. Disconnect the U13 television display assembly connector.
2. Disconnect the S5 video (video adapter) terminal connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   U13-18 (ADPI) - S5-8 (ADPG)	Always	Below 1 Ω
   U13-24 (VD) - S5-5 (VV+)	Always	Below 1 Ω
   U13-25 (VG) - S5-6 (VV-)	Always	Below 1 Ω
   U13-23 (SGN5) - S5-7 (SG)	Always	Below 1 Ω
   U13-18 (ADPI) - Body ground	Always	10 kΩ or higher
   U13-24 (VD) - Body ground	Always	10 kΩ or higher
   U13-25 (VG) - Body ground	Always	10 kΩ or higher
   U13-23 (SGN5) - Body ground	Always	10 kΩ or higher

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  2

1. Remove the video (video adapter) terminal connector still connected (Refer to DISASSEMBLY [08/2015 - 08/2019] ).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Using an oscilloscope, check the waveform.
   MEASUREMENT CONDITION



   Item	Content
   Terminal No. (Symbol)	S5-5 (VV+) - Body ground
   Tool Setting	0.2 V/DIV., 0.2 μs./DIV.
   Condition	External device playing, VTR displayed

   OK

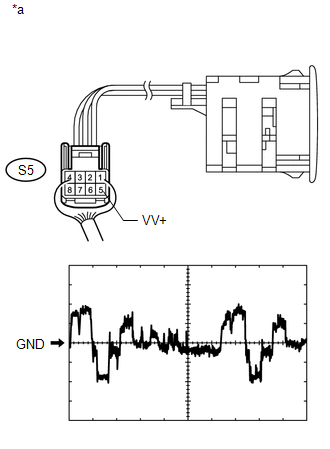

   Waveform is as shown in the illustration.

   TEXT IN ILLUSTRATION



   *a	Component with harness connected (Video [Video Adapter] Terminal)

Result:

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

(Refer to PROBLEM SYMPTOMS TABLE [08/2015 - 08/2019] )

Result:

NG

REPLACE VIDEO (VIDEO ADAPTER) TERMINAL

(Refer to DISASSEMBLY [08/2015 - 08/2019] )
