Components [08/2015 - 08/2019]

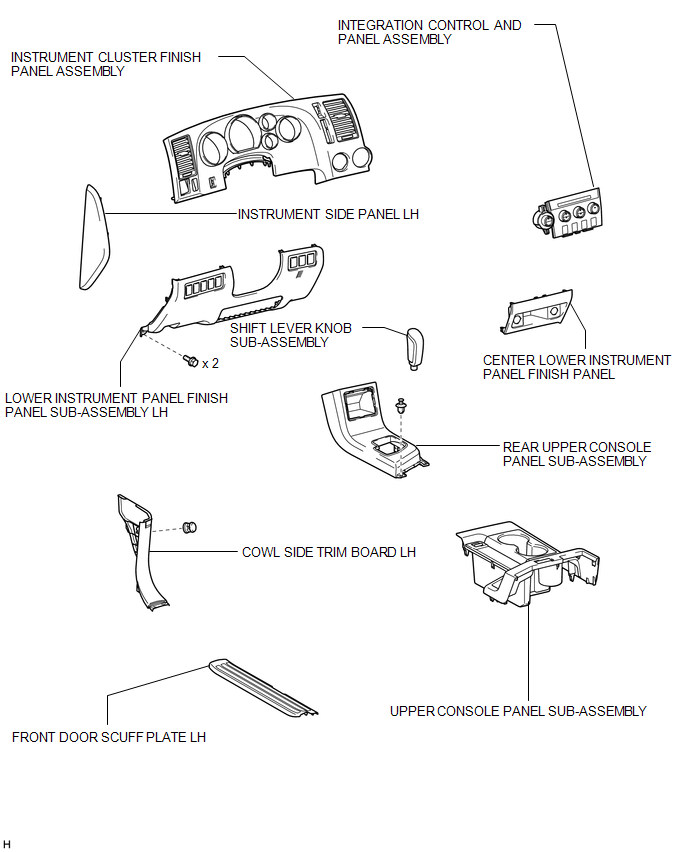

Fig 1: Navigation Receiver Replacement Components With Torque Specifications [08/2015 - 08/2019] (1 Of 2)
GTY558206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

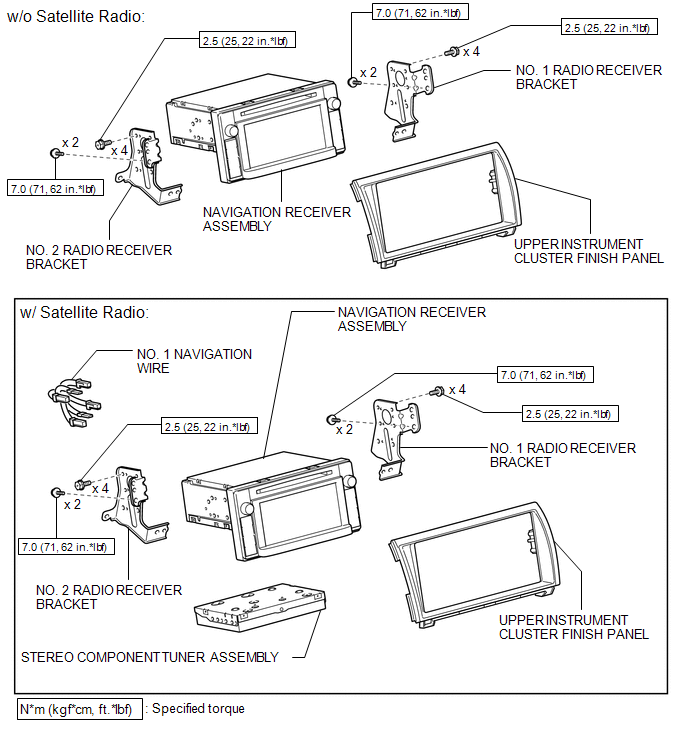

Fig 2: Navigation Receiver Replacement Components With Torque Specifications [08/2015 - 08/2019] (2 Of 2)
GTY425428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
