Removal [08/2019 - ]: Procedure

PRECAUTION
NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work.

Refer to PRECAUTION [08/2019 - ]
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [08/2019 - ]
REMOVE FRONT SEAT ASSEMBLY RH
1. for Manual Seat:
  Refer to REMOVAL [08/2019 - ]
2. for Power Seat:
  Refer to REMOVAL [08/2019 - ]
REMOVE AUDIO AMPLIFIER COVER

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the 3 clips and the audio amplifier cover.

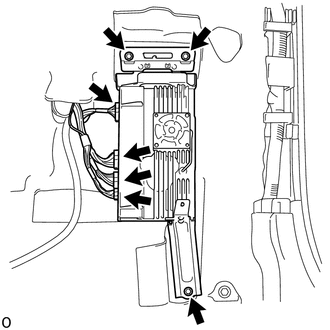

REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the 4 connectors.
2. Remove the 3 bolts and stereo component amplifier assembly.
