Removal [08/2015 - 08/2017]: Procedure

PRECAUTION
NOTE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Refer to PRECAUTION [08/2015 - 08/2017] ).
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [08/2015 - 08/2017] ).
REMOVE FRONT SEAT ASSEMBLY RH
1. for Manual Seat:
  Remove the front seat RH (Refer to REMOVAL [08/2015 - 08/2017] ).
2. for Power Seat:
  Remove the front seat RH (Refer to REMOVAL [08/2015 - 08/2019] ).
REMOVE AUDIO AMPLIFIER COVER

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disengage the 3 clips and remove the cover.

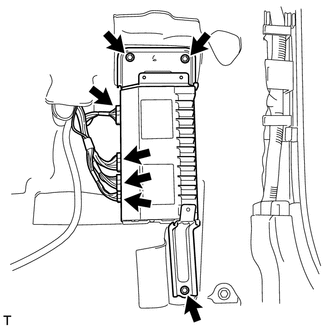

REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the 4 connectors.
2. Remove the 3 bolts and amplifier.
