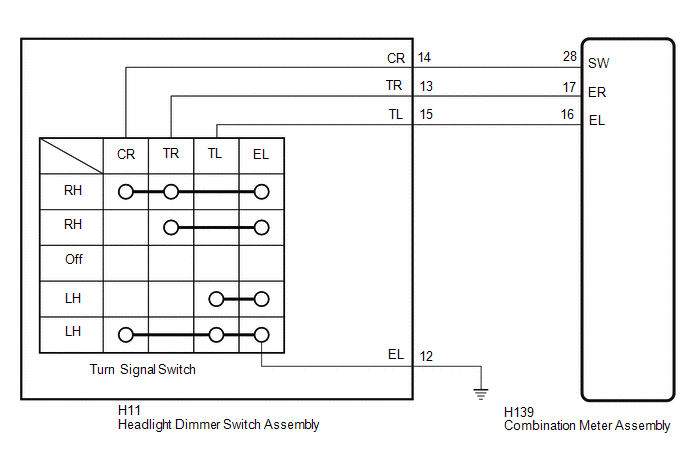

Turn Signal Switch Circuit [08/2017 - ]: Wiring Diagram

GTY748121

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
