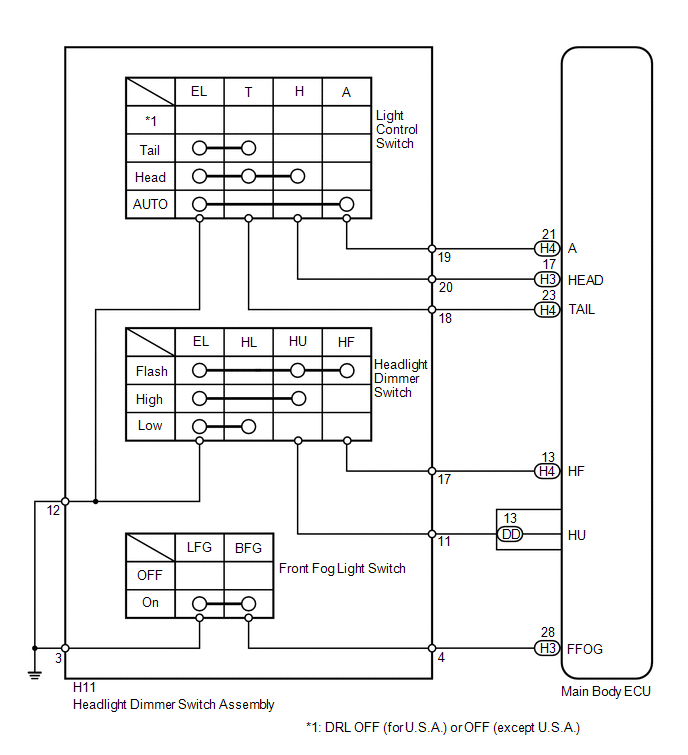

Light Control Switch Circuit [08/2015 - 08/2017]: Wiring Diagram

GTY591577

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
