Headlight Dimmer Switch Circuit [08/2015 - 08/2017]: Procedure
- INSPECT HEADLIGHT DIMMER SWITCH ASSEMBLY (TURN SIGNAL SWITCH)
- Remove the headlight dimmer switch assembly (Refer to REMOVAL [08/2015 - 08/2017]
).
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Switch Condition Specified Condition 13 (TR) - 12 (EL) Turn signal switch right turn Below 1 Ω Turn signal switch left turn 10 kΩ or higher 15 (TL) - 12 (EL) Turn signal switch left turn Below 1 Ω Turn signal switch right turn 10 kΩ or higher - Reinstall the headlight dimmer switch assembly.
Result:
NG
REPLACE HEADLIGHT DIMMER SWITCH ASSEMBLY
(Refer to REMOVAL [08/2015 - 08/2017] )
Result:
OK
See step 2
- Remove the headlight dimmer switch assembly (Refer to REMOVAL [08/2015 - 08/2017]
).
- CHECK HARNESS AND CONNECTOR ((HEADLIGHT DIMMER SWITCH - TURN SIGNAL FLASHER)

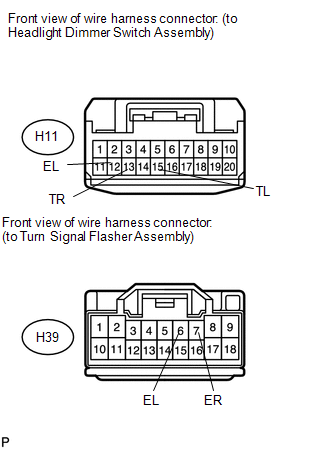

- Disconnect the H11 headlight dimmer switch assembly connector.
- Disconnect the H39 turn signal flasher assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition H11-13 (TR) - H39-7 (ER) Always Below 1 Ω H11-15 (TL) - H39-6 (EL) Always Below 1 Ω H11-12 (EL) - Body ground Always Below 1 Ω H11-13 (TR) - Body ground Always 10 kΩ or higher H11-15 (TL) - Body ground Always 10 kΩ or higher - Reconnect the turn signal flasher assembly connector.
- Reconnect the headlight dimmer switch assembly connector.
Result:
OK
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
(Refer to PROBLEM SYMPTOMS TABLE [08/2015 - 08/2017] )
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
- Disconnect the H11 headlight dimmer switch assembly connector.
