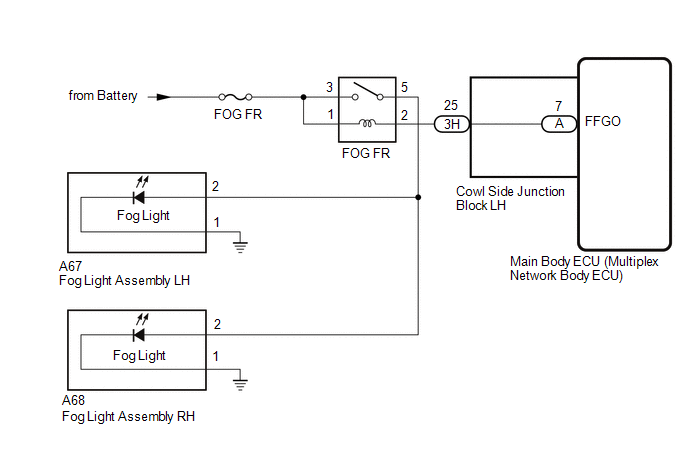

Front Fog Light Circuit [08/2017 - 08/2019]: Wiring Diagram

GTY763452

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
