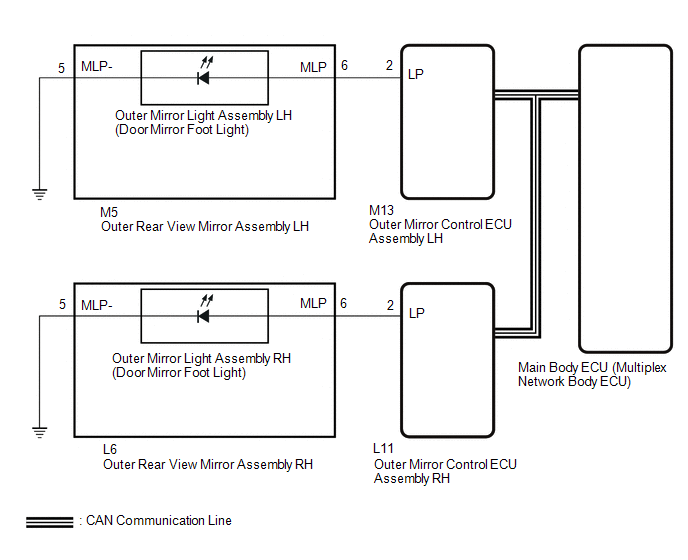

Door Mirror Foot Light Circuit [08/2017 - ]: Wiring Diagram

GTY746461

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
