Removal [08/2015 - ]: Procedure

  1. REMOVE STOP LIGHT SWITCH ASSEMBLY
    1. Disconnect the connector.

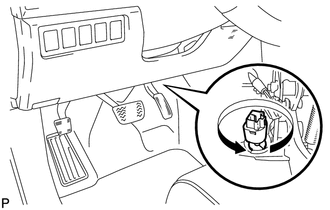

    2. Turn the stop light switch counterclockwise and remove it.
      GTY247293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
