Disassembly [08/2015 - ]: Procedure

  1. REMOVE REAR LIGHT GASKET LH

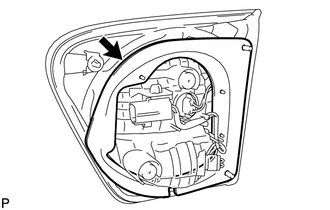

    1. Remove the rear light gasket.
      GTY584984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Detach the gasket if it adheres to the body.
      • Do not reuse a removed gasket. Replace it with a new one to prevent water from entering.
  2. REMOVE TAIL LIGHT BULB

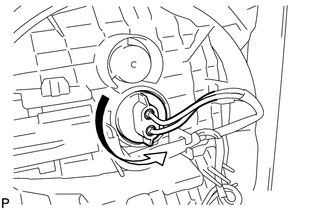

    1. Turn the tail light socket and bulb, in the direction indicated by the arrow in the illustration, to remove them.
      GTY213531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the tail light bulb from the light socket.
  3. REMOVE BACK UP LIGHT BULB

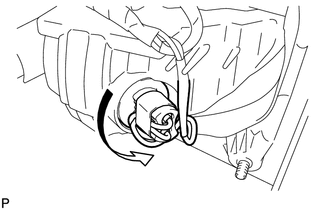

    1. Turn the back up light socket and bulb, in the direction indicated by the arrow in the illustration, to remove them.
      GTY213530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the back up light bulb from the light socket.
  4. REMOVE WIRE HARNESS

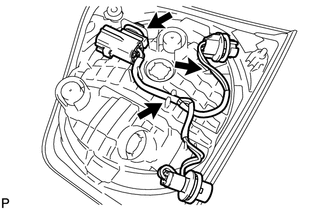

    1. Disengage the harness clamp and remove the wire harness.
      GTY607911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
