Disassembly [08/2015 - ]: Procedure

  1. REMOVE REAR COMBINATION LIGHT GASKET

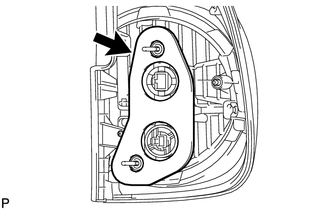

    1. Remove the rear combination light gasket.
      GTY584995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Detach the gasket if it adheres to the body.
      • Do not reuse a removed gasket. Replace it with a new one to prevent water from entering.
  2. REMOVE TAIL AND STOP LIGHT BULB

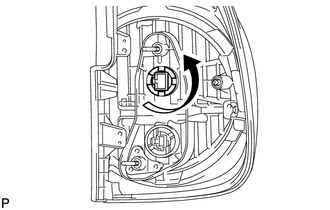

    1. Turn the tail and stop light socket and bulb, in the direction indicated by the arrow in the illustration, to remove them.
      GTY213535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the tail and stop light bulb from the light socket.
  3. REMOVE REAR TURN SIGNAL LIGHT BULB

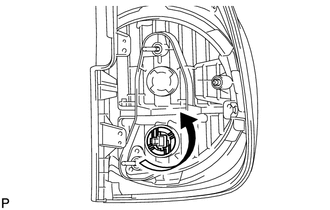

    1. Turn the rear turn signal light socket and bulb, in the direction indicated by the arrow in the illustration, to remove them.
      GTY247274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the rear turn signal light bulb from the light socket.
