Removal [08/2017 - ]: Procedure

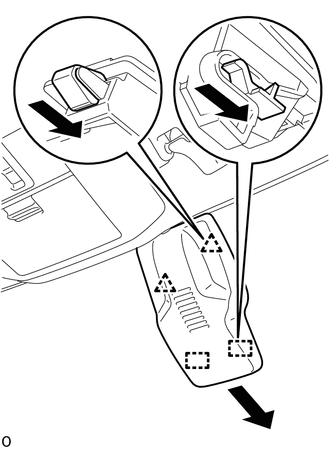

REMOVE NO. 1 FORWARD RECOGNITION COVER

Detach the 2 clips and 2 guides and remove the No. 1 forward recognition cover as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

When removing, press the cover parallel to the windshield glass surface and remove.

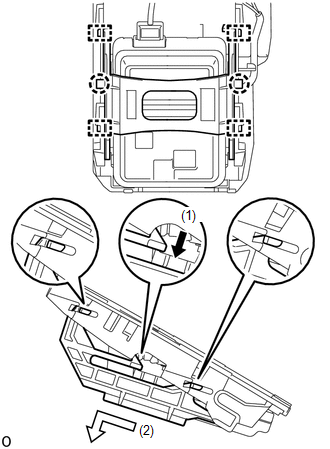

REMOVE FORWARD RECOGNITION LATCH

Detach the 2 claws in the direction indicated by the arrow (1) in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Detach the 4 guides in the direction indicated by the arrow (2) in the illustration to remove the forward recognition latch.

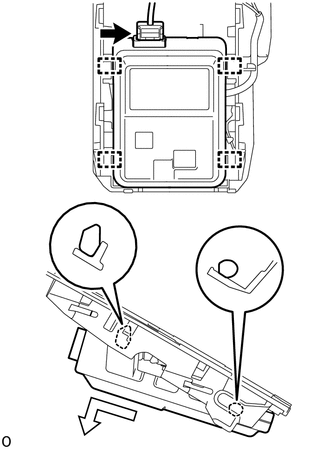

REMOVE FORWARD RECOGNITION CAMERA

NOTE:

If the forward recognition camera has been struck or dropped, replace it with a new one.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the connector.

NOTE:

Do not pull the harness forcibly when disconnecting the connector.

Detach the 4 guides and remove the forward recognition camera as shown in the illustration.
NOTE:
- Do not apply excessive force.
- If the forward recognition camera bracket is deformed or damaged, replace it together with the windshield glass.

REMOVE FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY

NOTE:

Do not touch the internal components of the forward recognition with heater hood sub-assembly or press on the heater when working on the forward recognition with heater hood sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Do not pull the harness forcibly when disconnecting the connector.

Detach the connector clamp.

Detach the 2 guides and remove the wire harness.

Detach the claw in the direction indicated by the arrow (1) in the illustration.

Heater Area

NOTE:

Do not press the heater area.

Detach the guide in the direction indicated by the arrow (2) in the illustration to remove the forward recognition with heater hood sub-assembly.
