Parts Location [08/2017 - ]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

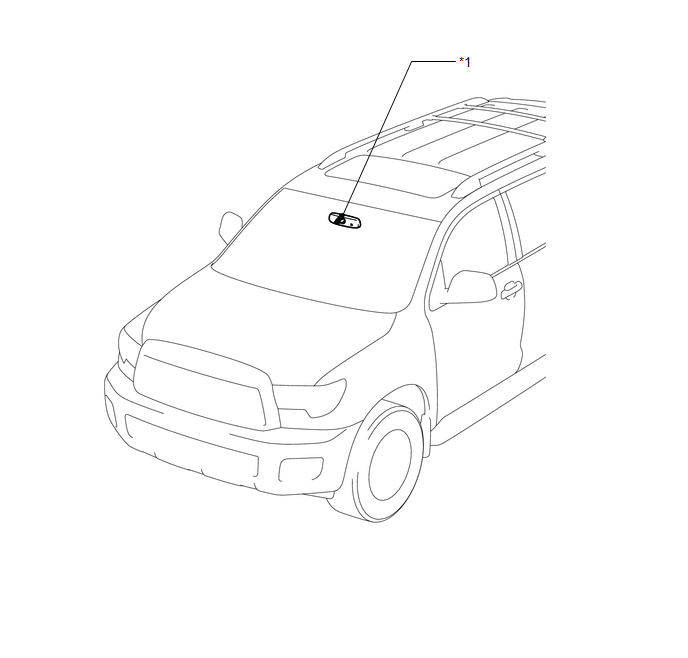

*1

INNER REAR VIEW MIRROR ASSEMBLY

-

-

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

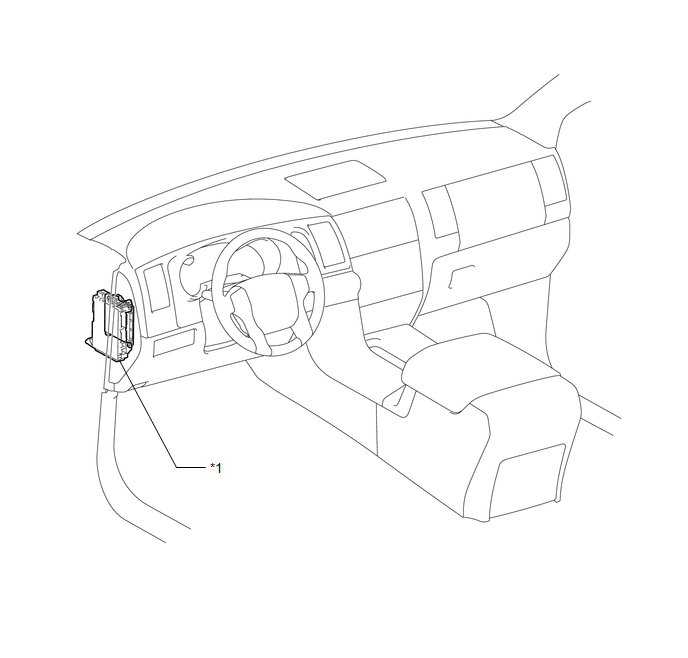

*1

COWL SIDE JUNCTION BLOCK LH - ECU-DCC NO. 2 FUSE - ECU-IG1 NO. 3 FUSE

-

-
