Terminals Of Ecu [12/2021 - 10/2022]

WARNING: This page is about a different variant/trim than selected.
  1. CHECK HYBRID VEHICLE CONTROL ECU ASSEMBLY

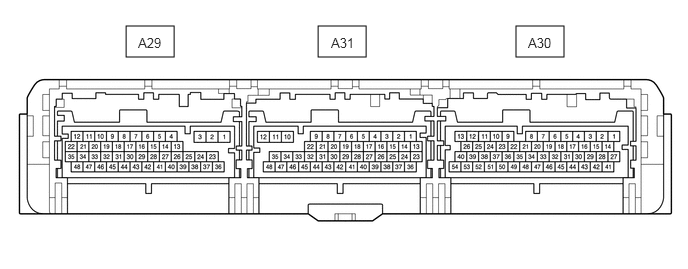

    Fig 1: Check Hybrid Vehicle Control ECU Assembly [12/2021 - 10/2022]
    GTY868632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Measure the voltage and resistance according to the value (s) in the table below.
      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      A29-7 (STP) - A30-3 (E1) G - W-B Stop light switch assembly signal Brake pedal depressed 11 to 14 V
      Brake pedal released 0 to 1.5 V
      A31-28 (ST1-) - A30-3 (E1) LA-G - W-B Stop light switch assembly signal Ignition switch ON, Brake pedal depressed 0 to 1.5 V
      Ignition switch ON, Brake pedal released 11 to 14 V
      A30-14 (CCS) - A30-3 (E1) LA-GR - W-B Cruise control switch circuit Cruise control main switch not pushed 1 MΩ or higher
      Cruise control main switch pushed Below 2.5 Ω
      CANCEL switch ON 228 to 252 Ω
      +RES switch ON 599 to 661 Ω
      -SET switch ON 1463 to 1617 Ω
  2. CHECK MILLIMETER WAVE RADAR SENSOR ASSEMBLY
    NOTE:
    • Turning the ignition switch to ON with connectors disconnected may cause DTCs to be stored. Make sure to clear the DTCs after inspection has been performed.
    • Do not apply excessive force to the millimeter wave radar sensor assembly connector.
    GTY1106083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Measure the voltage and resistance according to the value (s) in the table below.
      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      B9-8 (IGB) - B9-1 (SGND) SB - W-B Power source Ignition switch ON 11 to 14 V
      Ignition switch off Below 1 V
      B9-1 (SGND) - Body ground W-B - Body ground Ground Always Below 1 Ω
  3. CHECK FORWARD RECOGNITION CAMERA
    NOTE:
    • Turning the ignition switch to ON with connectors disconnected may cause DTCs to be stored. Make sure to clear the DTCs after inspection has been performed.
    • Do not apply excessive force to the forward recognition camera connector.
    GTY1105558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Measure the voltage and resistance according to the value (s) in the table below.
      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      P8-3 (LKSW) - P8-10 (GND) R - W-B Steering pad switch assembly signal (distance control signal) Ignition switch ON, steering pad switch assembly (vehicle-to-vehicle distance control switch) on Below 1 V
      Ignition switch ON, steering pad switch assembly (vehicle-to-vehicle distance control switch) off 4.75 to 5.25 V
      P8-7 (IGB) - P8-10 (GND) LA-P - W-B*1
      P - W-B*2      		 Power source Ignition switch ON 11 to 14 V
      Ignition switch off Below 1 V
      P8-10 (GND) - Body ground W-B - Body ground Ground Always Below 1 Ω

      *1: for TMC Made

      *2: excpt TMC Made
