Parts Location [11/2018 - 08/2020]: Illustration
WARNING: This page is about a different variant/trim than selected.

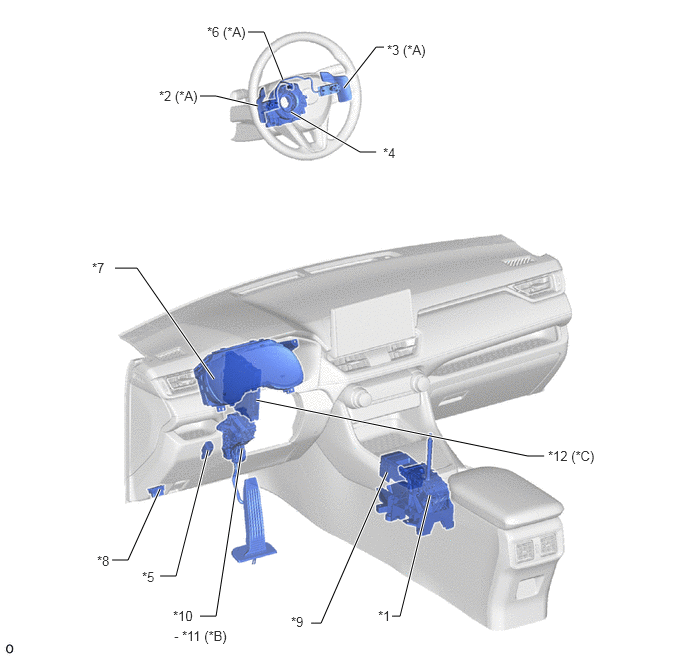

| *A | w/ Shift Paddle Switch | *B | w/ Kick Down Switch |
| *C | w/ Stop and Start System | - | - |
| *1 | SHIFT LOCK CONTROL UNIT ASSEMBLY (TRANSMISSION CONTROL SWITCH) | *2 | SHIFT PADDLE SWITCH LH (NO. 1 TRANSMISSION SHIFT SWITCH ASSEMBLY) |
| *3 | SHIFT PADDLE SWITCH RH (NO. 2 TRANSMISSION SHIFT SWITCH ASSEMBLY) | *4 | SPIRAL CABLE SUB-ASSEMBLY |
| *5 | STOP LIGHT SWITCH ASSEMBLY | *6 | NO. 1 SWITCH WIRE |
| *7 | COMBINATION METER ASSEMBLY | *8 | DLC3 |
| *9 | INTEGRATION CONTROL AND PANEL ASSEMBLY - SPORT MODE SWITCH - NORMAL MODE SWITCH |
*10 | ACCELERATOR PEDAL SENSOR ASSEMBLY |
| *11 | KICK DOWN SWITCH | *12 | ENGINE STOP AND START ECU |
| *1 | SOLENOID (SL1) VALVE | *2 | SOLENOID (SL2) VALVE |
| *3 | SOLENOID (SL3) VALVE | *4 | SOLENOID (SL4) VALVE |
| *5 | SOLENOID (SL5) VALVE | *6 | SOLENOID (SL6) VALVE |
| *7 | SOLENOID (SL) VALVE | *8 | SOLENOID (SLU) VALVE |
| *9 | SOLENOID (SLT) VALVE | *10 | TRANSMISSION WIRE - ATF TEMPERATURE SENSOR |
