System Diagram [11/2018 - ]

WARNING: This page is about a different variant/trim than selected.

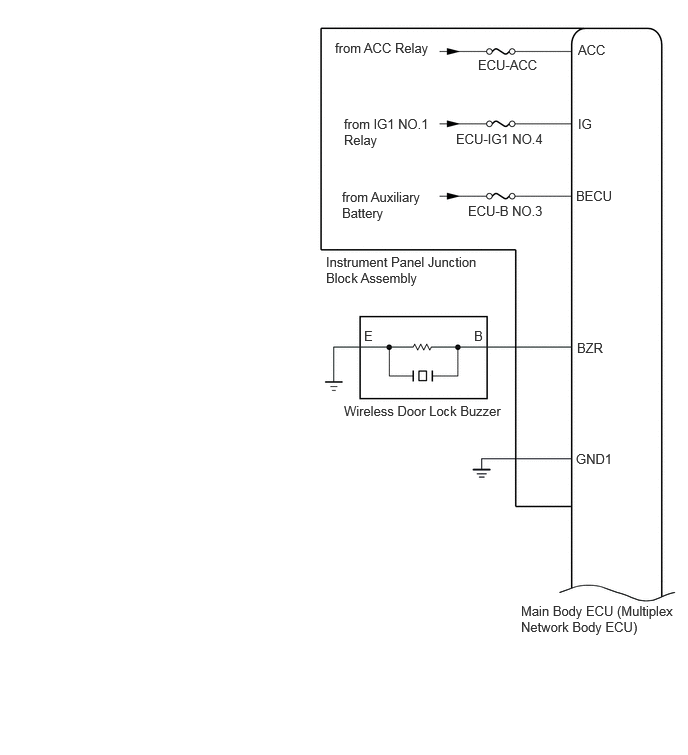

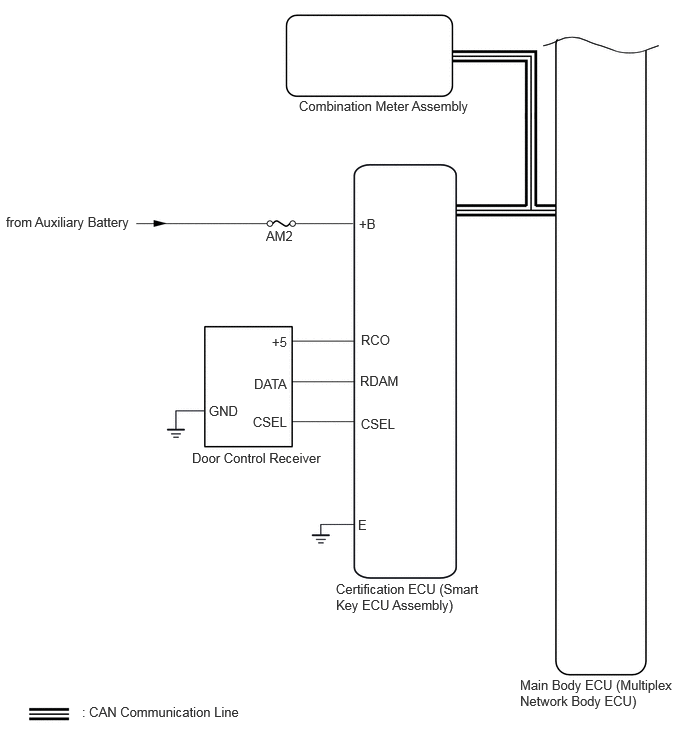

  1. Wireless Door Lock Control System
    GTY841210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GTY904601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Power Door Lock Control System

    Refer to SYSTEM DIAGRAM [11/2018 - 08/2020] , or refer to SYSTEM DIAGRAM [08/2020 - ]
