Installation [02/2019 - 12/2021]: Procedure

WARNING: This page is about a different variant/trim than selected.

INSTALL FUEL VAPOR CONTAINMENT VALVE (FUEL TANK SOLENOID MAIN VALVE ASSEMBLY)

Install the fuel vapor containment valve (fuel tank solenoid main valve assembly) to the vehicle body with the 2 nuts.
Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

Push the fuel tank vent hose onto the fuel vapor containment valve (fuel tank solenoid main valve assembly) and push in the retainer to engage the lock claws.

NOTE:

Check that there are no scratches or foreign matter around the connecting parts of the fuel tank vent hose and fuel vapor containment valve (fuel tank solenoid main valve assembly) before performing this work.
After connecting the fuel tank vent hose, check that the fuel tank vent hose is securely connected by pulling on the fuel tank vent hose.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

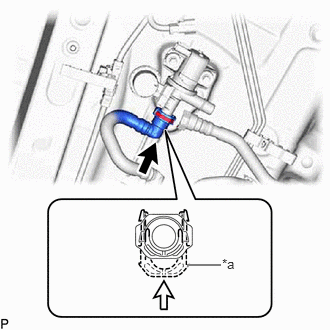

*a	Retainer
	Push
	Push in

Connect the fuel vapor containment valve (fuel tank solenoid main valve assembly) connector.

Push the fuel tank vent hose sub-assembly onto the fuel vapor containment valve (fuel tank solenoid main valve assembly) and push in the retainer to engage the lock claws.

NOTE:

Check that there are no scratches or foreign matter around the connecting parts of the fuel tank vent hose sub-assembly and fuel vapor containment valve (fuel tank solenoid main valve assembly) before performing this work.
After connecting the fuel tank vent hose sub-assembly, check that the fuel tank vent hose sub-assembly is securely connected by pulling on the fuel tank vent hose sub-assembly.

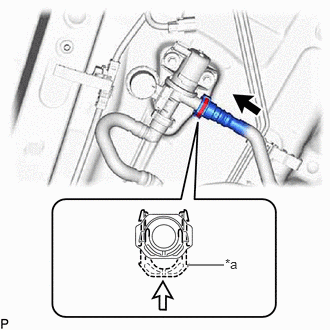

*a	Retainer
	Push
	Push in

INSTALL FRONT CENTER FLOOR COVER
Refer to PROCEDURE - Step 11 [02/2019 - 06/2020] , or refer to PROCEDURE - Step 11 [06/2020 - 08/2020] , or refer to PROCEDURE - Step 11 [08/2020 - ]
INSTALL FRONT FLOOR COVER LH
Refer to PROCEDURE - Step 41 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 41 [08/2020 - 12/2021]
