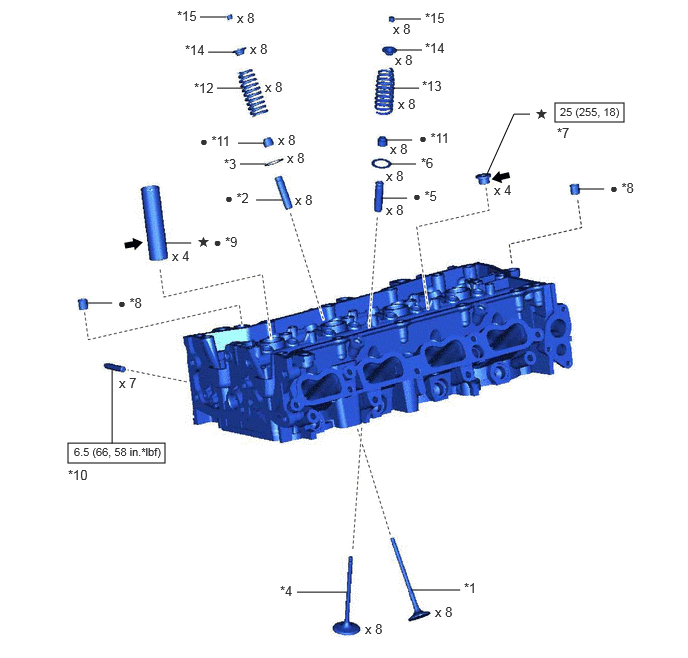

Components [11/2018 - ]
WARNING: This page is about a different variant/trim than selected.
| Callout | Description | Callout | Description |
| *1 | EXHAUST VALVE | *2 | EXHAUST VALVE GUIDE BUSH |
| *3 | EXHAUST VALVE SPRING SEAT | *4 | INTAKE VALVE |
| *5 | INTAKE VALVE GUIDE BUSH | *6 | INTAKE VALVE SPRING SEAT |
| *7 | NO. 1 STRAIGHT SCREW PLUG | *8 | RING PIN |
| *9 | SPARK PLUG TUBE | *10 | STUD BOLT |
| *11 | VALVE STEM OIL SEAL | *12 | EXHAUST VALVE COMPRESSION SPRING |
| *13 | INTAKE VALVE COMPRESSION SPRING | *14 | VALVE SPRING RETAINER |
| *15 | VALVE SPRING RETAINER LOCK | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| Adhesive 1324 | * | Precoated part |
