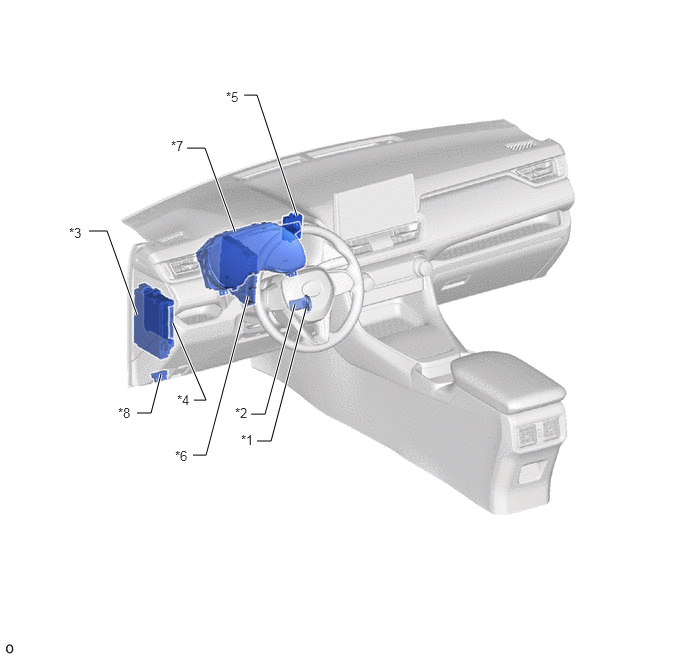

Parts Location [02/2019 - 10/2022]: Illustration
WARNING: This page is about a different variant/trim than selected.
| *1 | UNLOCK WARNING SWITCH ASSEMBLY | *2 | TRANSPONDER KEY COIL |
| *3 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-B NO. 1 FUSE - ECU-IG2 NO. 3 FUSE |
*4 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *5 | TRANSPONDER KEY ECU ASSEMBLY | *6 | HYBRID VEHICLE CONTROL ECU ASSEMBLY |
| *7 | COMBINATION METER ASSEMBLY - SECURITY INDICATOR LIGHT |
*8 | DLC3 |
