Components [12/2021 - ]

WARNING: This page is about a different variant/trim than selected.

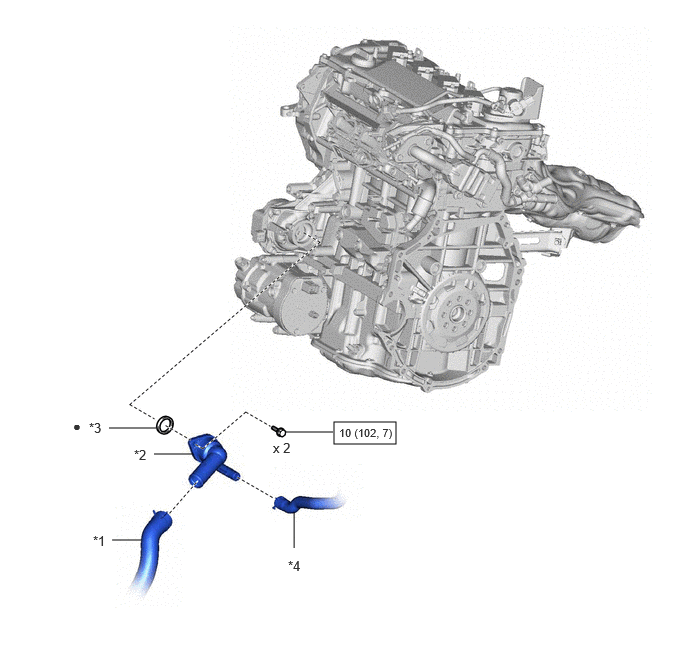

Fig 1: Thermostat Replacement Components With Torque Specifications [12/2021 - ]
GTY1108450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 2 RADIATOR HOSE *2 WATER INLET WITH THERMOSTAT SUB-ASSEMBLY
*3 GASKET *4 NO. 7 WATER BY-PASS HOSE
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
