Components [06/2020 - ]
WARNING: This page is about a different variant/trim than selected.

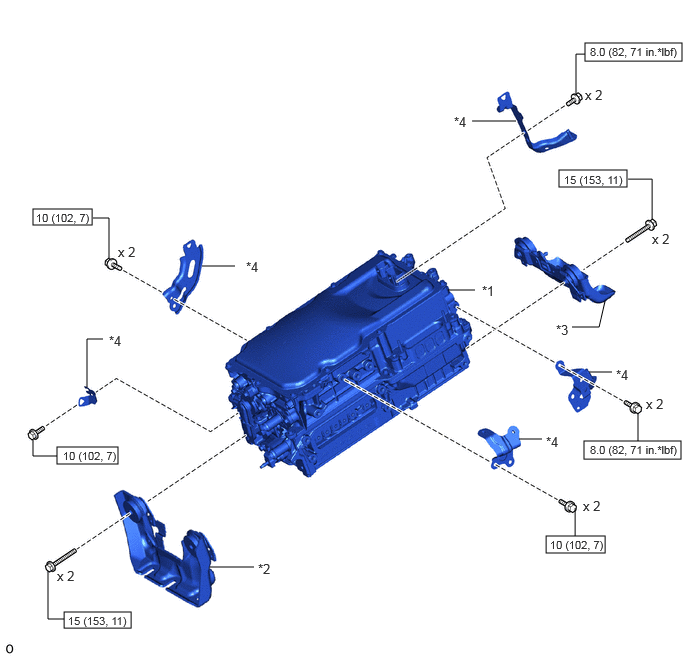

Fig 1: Motor Generator Control Computer (For AWD) Replacement Components With Torque Specifications [06/2020 - ] (1 Of 2)
| Callout | Description | Callout | Description |
| *1 | INVERTER WITH CONVERTER ASSEMBLY | *2 | NO. 1 INVERTER BRACKET |
| *3 | NO. 2 INVERTER BRACKET | *4 | WIRE HARNESS CLAMP BRACKET |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

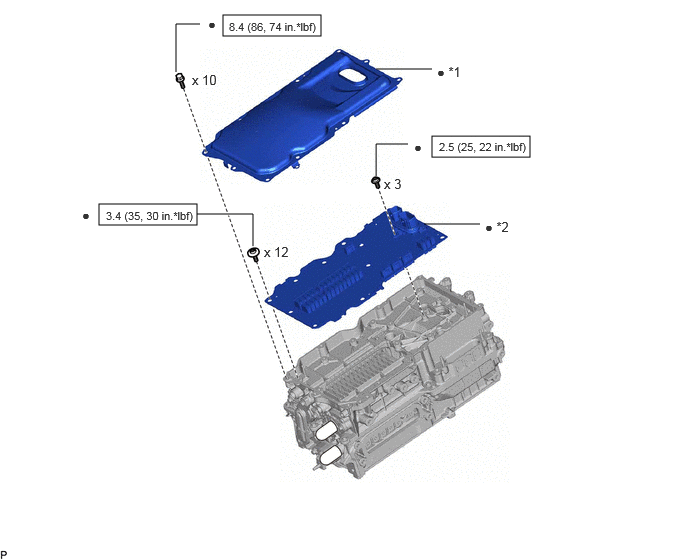

Fig 2: Motor Generator Control Computer (For AWD) Replacement Components With Torque Specifications [06/2020 - ] (2 Of 2)
| Callout | Description | Callout | Description |
| *1 | INVERTER UPPER COVER | *2 | MOTOR GENERATOR CONTROL ECU KIT |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non - reusable part |
