Components [02/2019 - 06/2020]
WARNING: This page is about a different variant/trim than selected.
Fig 1: Motor Generator Control Computer (For AWD) Replacement Components With Torque Specifications [02/2019 - 06/2020] (1 Of 3)
| Callout | Description | Callout | Description |
| *A | w/o HYBRID INVERTER PROTECTOR ASSEMBLY | - | - |
| *1 | INVERTER WITH CONVERTER ASSEMBLY | *2 | NO. 1 INVERTER BRACKET |
| *3 | NO. 2 INVERTER BRACKET | *4 | WIRE HARNESS CLAMP BRACKET |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

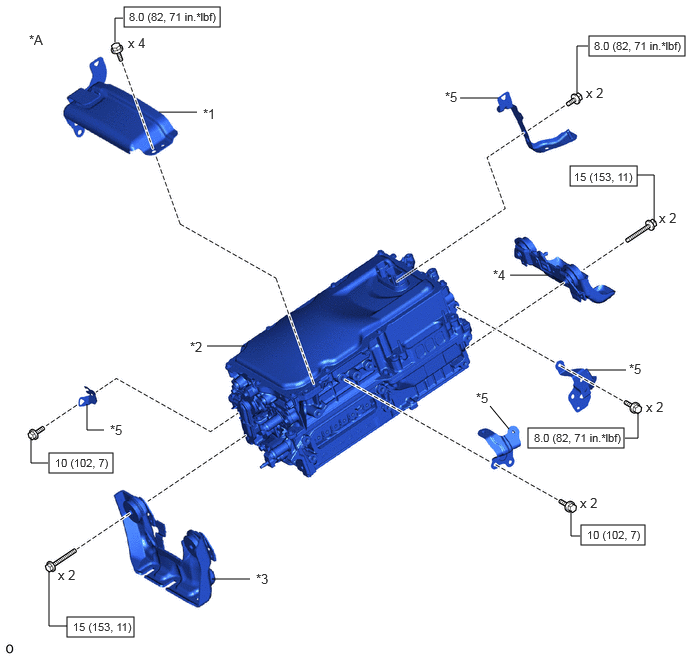

Fig 2: Motor Generator Control Computer (For AWD) Replacement Components With Torque Specifications [02/2019 - 06/2020] (2 Of 3)
| Callout | Description | Callout | Description |
| *A | w/ HYBRID INVERTER PROTECTOR ASSEMBLY | - | - |
| *1 | HYBRID INVERTER PROTECTOR ASSEMBLY | *2 | INVERTER WITH CONVERTER ASSEMBLY |
| *3 | NO. 1 INVERTER BRACKET | *4 | NO. 2 INVERTER BRACKET |
| *5 | WIRE HARNESS CLAMP BRACKET | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
Fig 3: Motor Generator Control Computer (For AWD) Replacement Components With Torque Specifications [02/2019 - 06/2020] (3 Of 3)
| Callout | Description | Callout | Description |
| *1 | INVERTER UPPER COVER | *2 | MOTOR GENERATOR CONTROL ECU KIT |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non - reusable part |
