Components [11/2018 - 08/2020]
WARNING: This page is about a different variant/trim than selected.

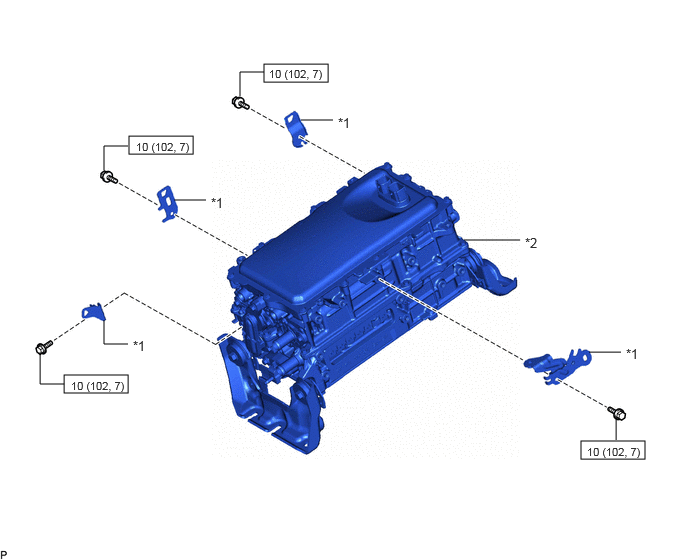

Fig 1: Motor Generator Control Computer (For 2WD) Replacement Components With Torque Specifications [11/2018 - 08/2020] (1 Of 2)
| Callout | Description | Callout | Description |
| *1 | WIRE HARNESS CLAMP BRACKET | *2 | INVERTER WITH CONVERTER ASSEMBLY |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
Fig 2: Motor Generator Control Computer (For 2WD) Replacement Components With Torque Specifications [11/2018 - 08/2020] (2 Of 2)
| Callout | Description | Callout | Description |
| *1 | INVERTER UPPER COVER | *2 | MOTOR GENERATOR CONTROL ECU KIT |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non - reusable part |
