Components [06/2020 - ]
WARNING: This page is about a different variant/trim than selected.

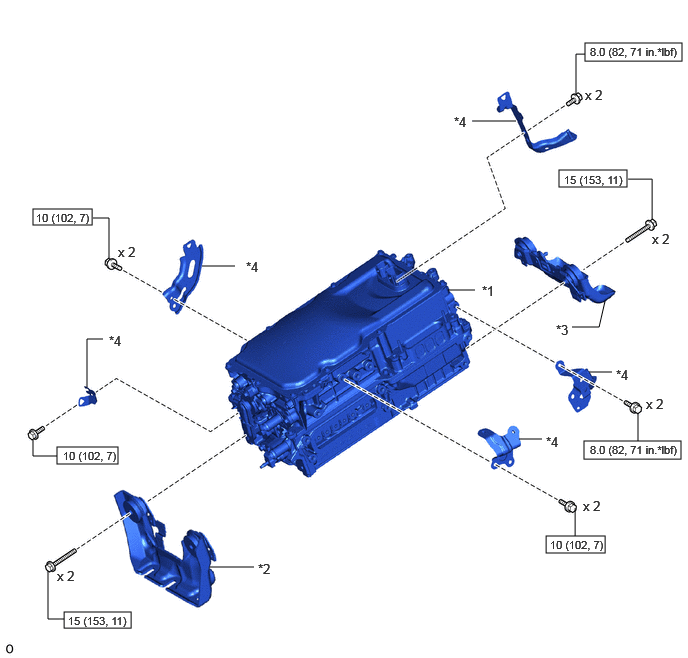

Fig 1: Electric Vehicle Converter (For AWD) Replacement Components With Torque Specifications [06/2020 - ] (1 Of 2)
| Callout | Description | Callout | Description |
| *1 | INVERTER WITH CONVERTER ASSEMBLY | *2 | NO. 1 INVERTER BRACKET |
| *3 | NO. 2 INVERTER BRACKET | *4 | WIRE HARNESS CLAMP BRACKET |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
Fig 2: Electric Vehicle Converter (For AWD) Replacement Components With Torque Specifications [06/2020 - ] (2 Of 2)
| Callout | Description | Callout | Description |
| *1 | O-RING | *2 | CONNECTOR |
| *3 | HV CONVERTER KIT | *4 | CONVERTER COVER |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non - reusable part |
