Replacement [11/2018 - ]: Procedure

Refer to REMOVAL [11/2018 - 02/2019] , or refer to REMOVAL [02/2019 - 12/2021] , or refer to REMOVAL [12/2021 - ]

1. Using SST, remove the front drive shaft oil seal LH from the automatic transaxle case sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • SST: 09308-00010
   NOTE:

   Be careful not to damage the automatic transaxle case sub-assembly.

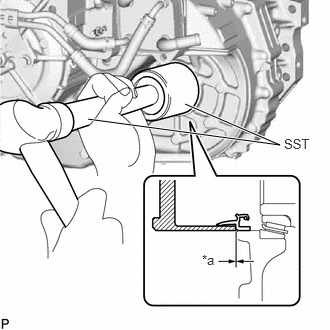

1. Using SST and a hammer, install a new front drive shaft oil seal LH to the automatic transaxle case sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Depth

   • SST: 09316-10010
   • SST: 09950-70010
     1. 09951-07100

   Standard Depth

   -0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

   NOTE:

   • Make sure that the outer lip of the front drive shaft oil seal LH is not pinched by SST.

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

     *a	Correct
     *b	Incorrect
     *c	Outer Lip

   • Do not allow foreign matter to attach to the inner lip and outer lip of the front drive shaft oil seal LH.
   • Do not install the front drive shaft oil seal LH at an angle.
   • Do not remove the grease from the inner lip and outer lip of the front drive shaft oil seal LH.

Refer to INSTALLATION [11/2018 - 02/2019] , or refer to INSTALLATION [02/2019 - ]
