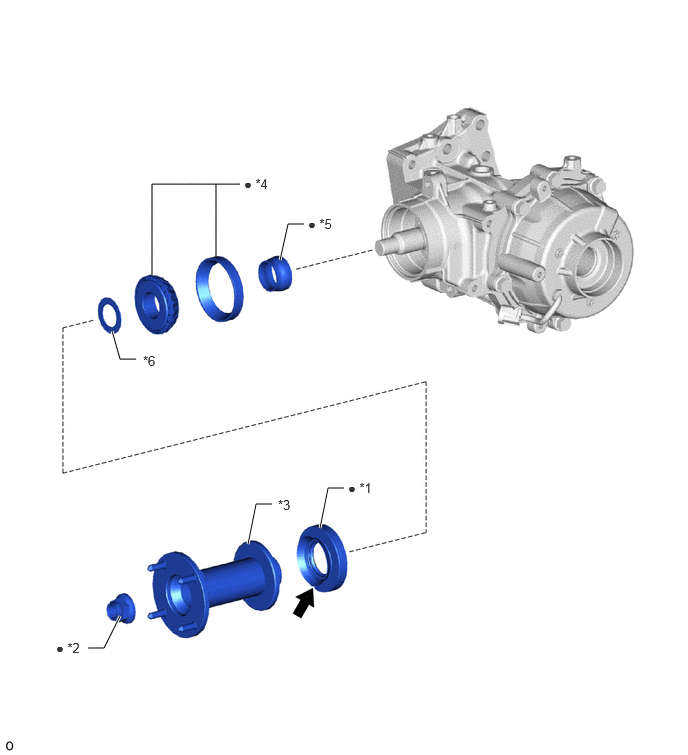

Components [11/2018 - ]
WARNING: This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
NO. 2 TRANSFER CASE OIL SEAL |
*2 |
OUTPUT SHAFT COMPANION FLANGE NUT |
| *3 |
OUTPUT SHAFT COMPANION FLANGE SUB-ASSEMBLY |
*4 |
REAR DRIVE PINION BEARING |
| *5 |
TRANSFER PINION BEARING SPACER |
*6 |
SPACER |
| • |
Non-reusable part |
 |
MP grease |
