Components [11/2018 - ]
WARNING: This page is about a different variant/trim than selected.

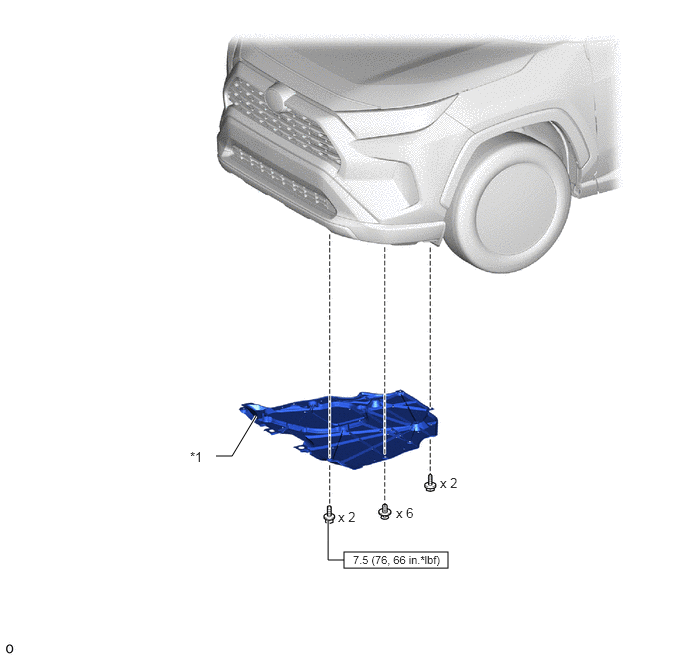

Fig 1: Transfer Case Front Oil Seal (For RH Side) Replacement Components With Torque Specifications (1 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 2 ENGINE UNDER COVER ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

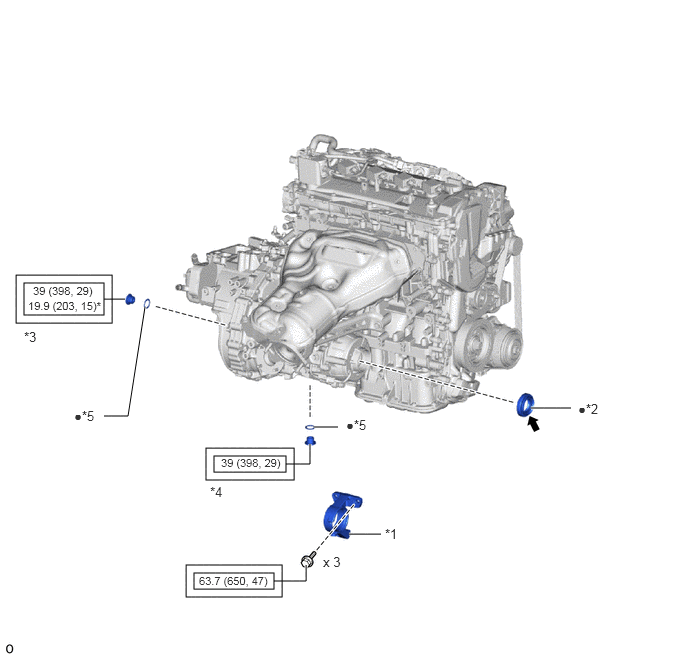

Fig 2: Transfer Case Front Oil Seal (For RH Side) Replacement Components With Torque Specifications (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | DRIVE SHAFT BEARING BRACKET | *2 | TRANSFER CASE OIL SEAL RH |
| *3 | TRANSFER FILLER PLUG | *4 | TRANSFER DRAIN PLUG |
| *5 | GASKET | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | * | For use with union nut wrench | |
| • | Non-reusable part | MP grease |
