Components [06/2020 - ]
WARNING: This page is about a different variant/trim than selected.

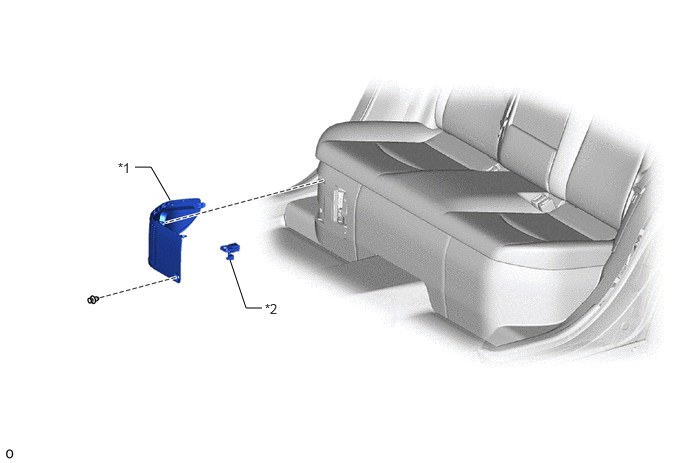

| *1 | BATTERY SERVICE HOLE COVER | *2 | SERVICE PLUG GRIP |

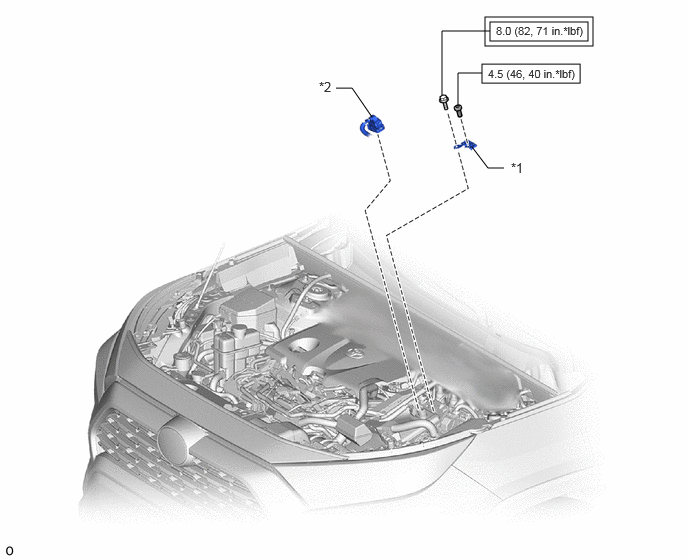

Fig 2: Battery ECU (For Lithium-Ion Battery) Replacement Components With Torque Specifications (2 Of 4)
| Callout | Description | Callout | Description |
| *1 | CONNECTOR COVER ASSEMBLY | *2 | ENGINE ROOM MAIN WIRE |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |

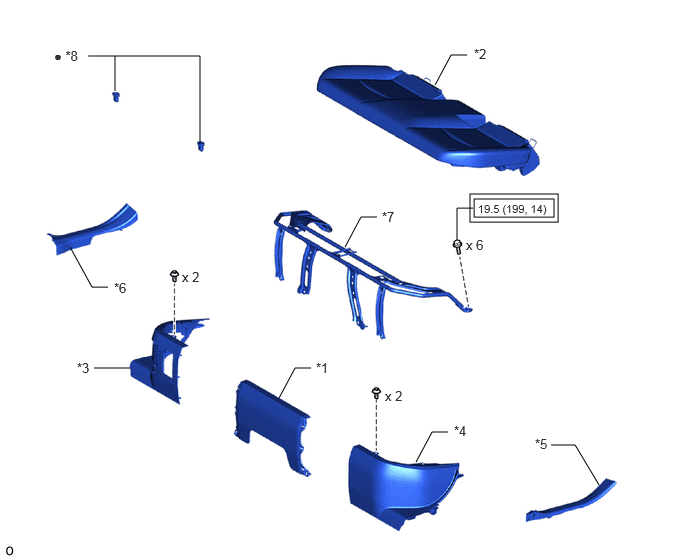

Fig 3: Battery ECU (For Lithium-Ion Battery) Replacement Components With Torque Specifications (3 Of 4)
| Callout | Description | Callout | Description |
| *1 | BATTERY SERVICE COVER BOARD | *2 | BENCH TYPE REAR SEAT CUSHION ASSEMBLY |
| *3 | NO. 2 BATTERY SERVICE COVER BOARD | *4 | NO. 3 BATTERY SERVICE COVER BOARD |
| *5 | REAR DOOR SCUFF PLATE LH | *6 | REAR DOOR SCUFF PLATE RH |
| *7 | REAR SEAT CUSHION LEG SUB-ASSEMBLY | *8 | REAR SEAT CUSHION LOCK HOOK |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part |

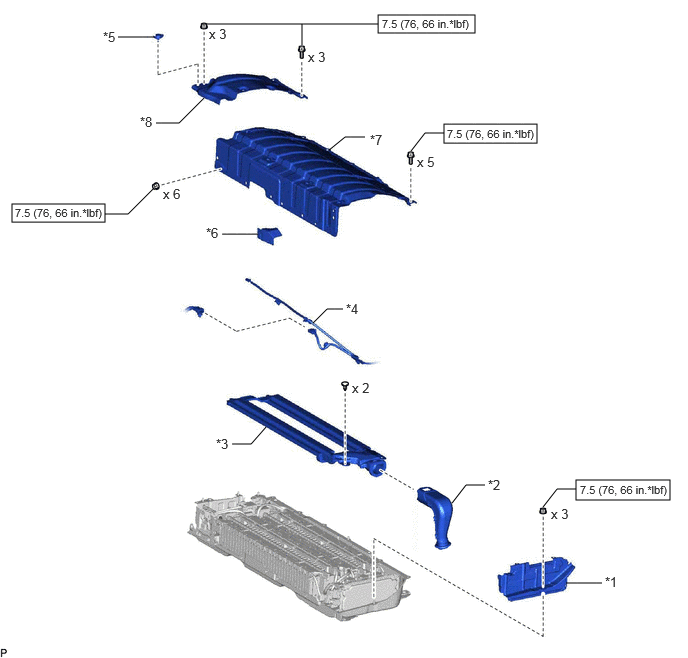

Fig 4: Battery ECU (For Lithium-Ion Battery) Replacement Components With Torque Specifications (4 Of 4)
| Callout | Description | Callout | Description |
| *1 | BATTERY ECU ASSEMBLY | *2 | HYBRID BATTERY HOSE ASSEMBLY |
| *3 | NO. 1 HV BATTERY HOSE | *4 | FLOOR WIRE |
| *5 | BATTERY COVER LOCK STRIKER | *6 | NO. 4 HV BATTERY PROTECTOR |
| *7 | UPPER HV BATTERY COVER SUB-ASSEMBLY | *8 | NO. 1 HV BATTERY COVER PANEL RH |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
