Parts Location [11/2018 - 02/2019]: Illustration
WARNING: This page is about a different variant/trim than selected.
| *A | w/ Pre-collision System | - | - |
| *1 | FORWARD RECOGNITION CAMERA | *2 | HEADLIGHT ECU SUB-ASSEMBLY RH |
| *3 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | *4 | INVERTER WITH CONVERTER ASSEMBLY |
| *5 | HEADLIGHT ECU SUB-ASSEMBLY LH | *6 | ECM |
| *7 | BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY (SKID CONTROL ECU) | *8 | RACK AND PINION POWER STEERING GEAR ASSEMBLY |
| *A | w/ Blind Spot Monitor System | *B | w/ Panoramic View Monitor System |
| *C | w/ Parking Assist Monitor System | *D | w/ Power Back Door System |
| *1 | PARKING BRAKE ECU ASSEMBLY | *2 | BLIND SPOT MONITOR SENSOR LH |
| *3 | TELEVISION CAMERA ASSEMBLY | *4 | MULTIPLEX NETWORK DOOR ECU |

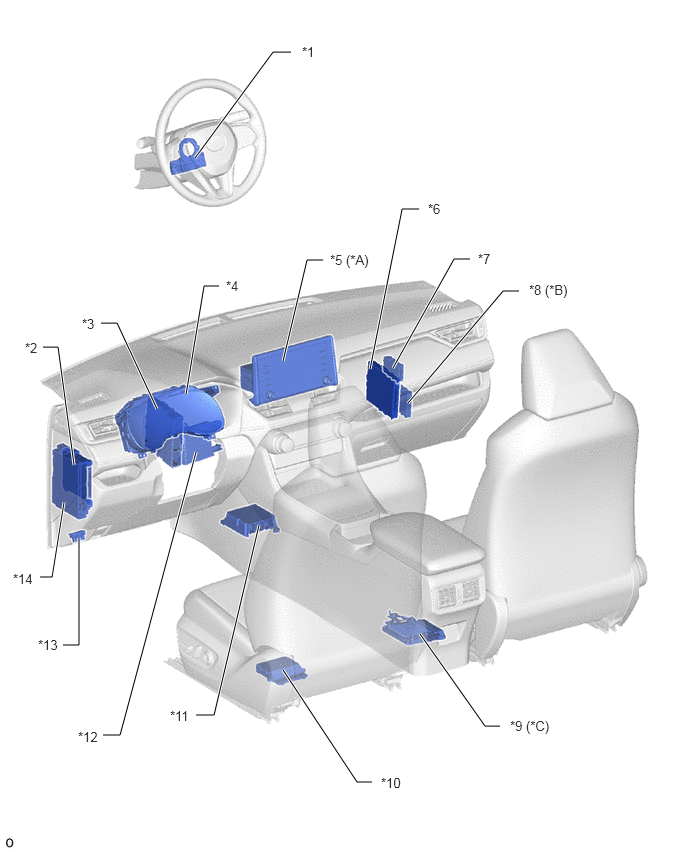

| *A | for Radio and Display Type | *B | w/ Intuitive Parking Assist System |
| *C | w/ Panoramic View Monitor System | - | - |
| *1 | STEERING SENSOR | *2 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *3 | HYBRID VEHICLE CONTROL ECU ASSEMBLY | *4 | COMBINATION METER ASSEMBLY |
| *5 | RADIO AND DISPLAY RECEIVER ASSEMBLY | *6 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *7 | CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) | *8 | CLEARANCE WARNING ECU ASSEMBLY |
| *9 | PARKING ASSIST ECU | *10 | POSITION CONTROL ECU ASSEMBLY |
| *11 | AIRBAG ECU ASSEMBLY | *12 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *13 | DLC3 | *14 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY |
| *A | w/ Bus Buffer ECU | - | - |
| *1 | NO. 1 CAN JUNCTION CONNECTOR | *2 | NO. 2 CAN JUNCTION CONNECTOR |
| *3 | NO. 3 CAN JUNCTION CONNECTOR | *4 | NO. 4 CAN JUNCTION CONNECTOR |
| *5 | NO. 5 CAN JUNCTION CONNECTOR | *6 | NO. 6 CAN JUNCTION CONNECTOR |
| *7 | NO. 7 CAN JUNCTION CONNECTOR | *8 | NO. 8 CAN JUNCTION CONNECTOR |
| *9 | NO. 1 CAN JUNCTION TERMINAL | *10 | BUS BUFFER ECU |
