Parts Location [08/2020 - 12/2021]: Illustration
WARNING: This page is about a different car, the 2025 Toyota RAV4, 2024 Toyota RAV4, 2023 Toyota RAV4, 2022 Toyota RAV4, and 2021 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

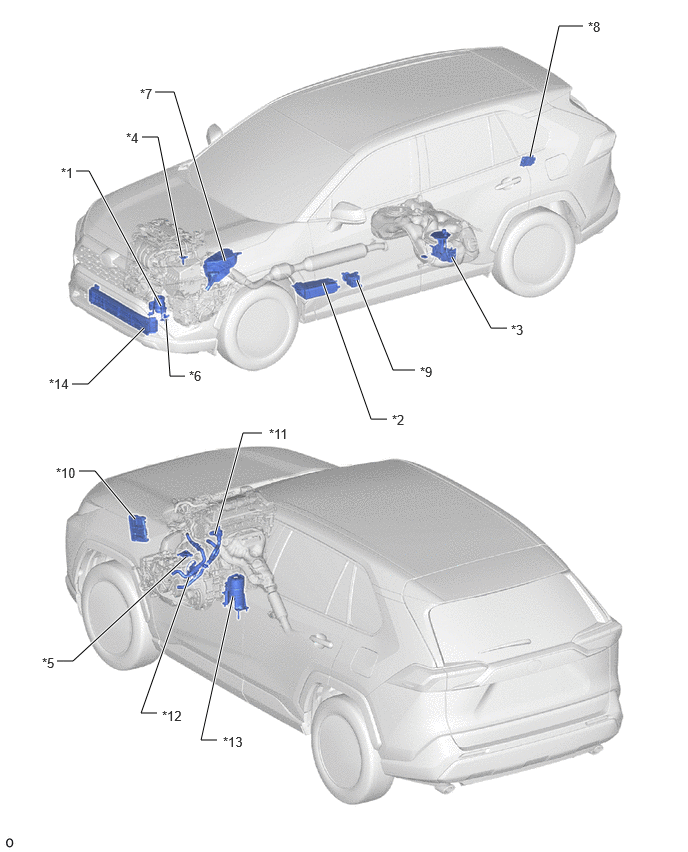

| *1 |
FRONT ENGINE MOUNTING INSULATOR |
*2 |
CANISTER |
| *3 |
FUEL PUMP (for Low Pressure Side) |
*4 |
MASS AIR FLOW METER SUB-ASSEMBLY |
| *5 |
PARK/NEUTRAL POSITION SWITCH ASSEMBLY |
*6 |
VACUUM SWITCHING VALVE (for Active Control Engine Mount System) |
| *7 |
NO. 1 ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY |
*8 |
FUEL PUMP CONTROL ECU |
| *9 |
CANISTER PUMP MODULE |
*10 |
ECM |
| *11 |
FLOW SHUTTING VALVE (for Heater Control) (WATER BY-PASS HOSE ASSEMBLY) |
*12 |
FLOW SHUTTING VALVE (for ATF Control) (NO. 1 WATER BY-PASS HOSE) |
| *13 |
REAR ENGINE MOUNTING INSULATOR |
*14 |
RADIATOR SHUTTER ASSEMBLY
- RADIATOR SHUTTER SUB-ASSEMBLY
- SWING GRILLE ACTUATOR ASSEMBLY |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
AIR FUEL RATIO SENSOR (Sensor 2) |
*2 |
ENGINE COOLANT TEMPERATURE SENSOR |
| *3 |
DIRECT FUEL INJECTOR ASSEMBLY |
*4 |
FUEL PRESSURE SENSOR (for Low Pressure Side) |
| *5 |
NO. 2 ENGINE COOLANT TEMPERATURE SENSOR |
*6 |
PORT FUEL INJECTOR ASSEMBLY |
| *7 |
THROTTLE BODY WITH MOTOR ASSEMBLY |
*8 |
VACUUM SWITCHING VALVE (PURGE VSV) |
| *9 |
WATER INLET WITH THERMOSTAT SUB-ASSEMBLY |
*10 |
CRANKSHAFT POSITION SENSOR |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

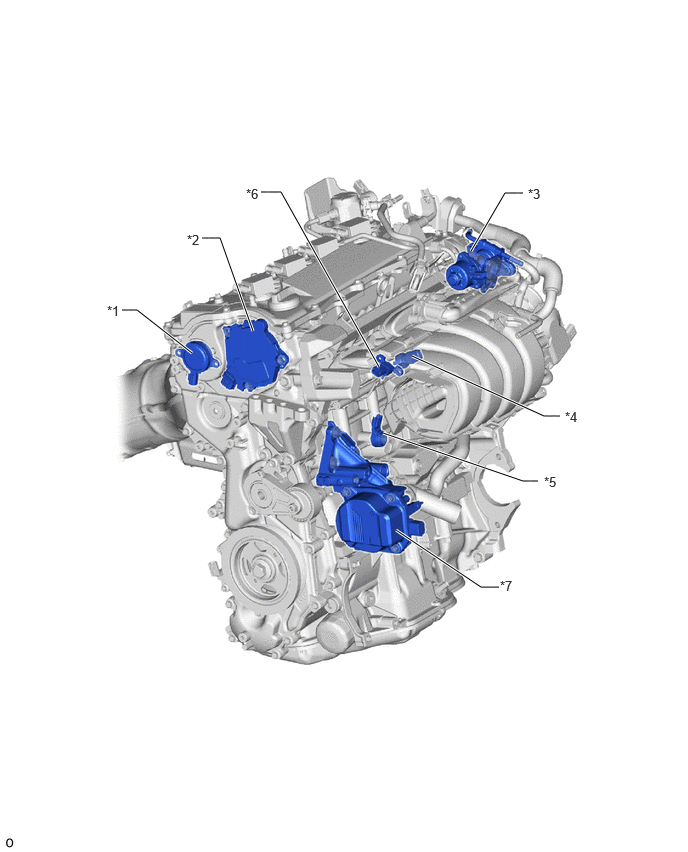

| *1 |
CAM TIMING OIL CONTROL SOLENOID ASSEMBLY |
*2 |
CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY |
| *3 |
EGR VALVE ASSEMBLY |
*4 |
FUEL PRESSURE SENSOR (for High Pressure Side) |
| *5 |
KNOCK CONTROL SENSOR |
*6 |
MANIFOLD ABSOLUTE PRESSURE SENSOR |
| *7 |
ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING) |
- |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

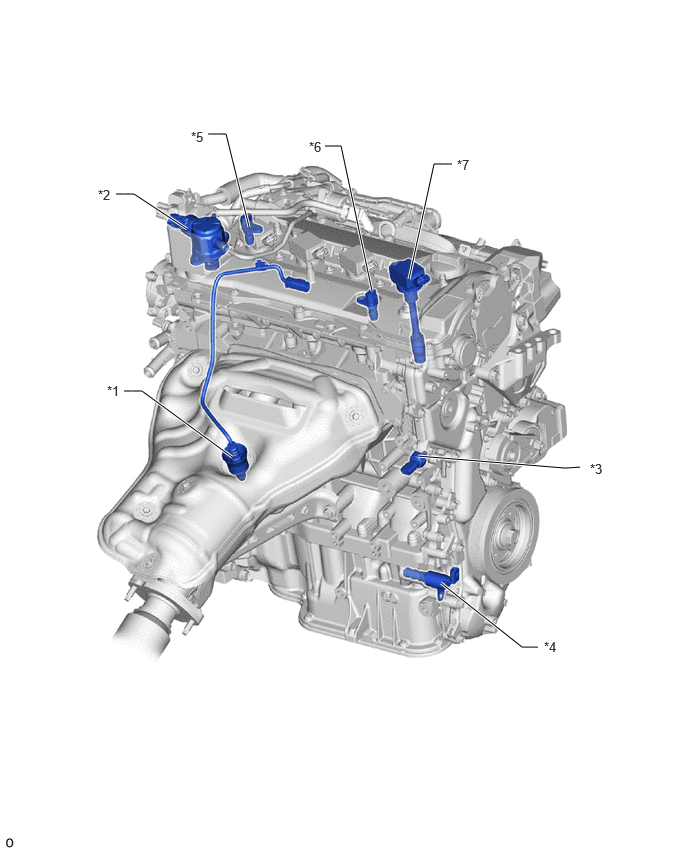

| *1 |
AIR FUEL RATIO SENSOR (Sensor 1) |
*2 |
FUEL PUMP ASSEMBLY (for High Pressure Side) |
| *3 |
ENGINE OIL PRESSURE AND TEMPERATURE SENSOR |
*4 |
OIL PRESSURE CONTROL VALVE ASSEMBLY |
| *5 |
CAMSHAFT POSITION SENSOR (for Intake Camshaft) |
*6 |
CAMSHAFT POSITION SENSOR (for Exhaust Camshaft) |
| *7 |
IGNITION COIL ASSEMBLY |
- |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
ACCELERATOR PEDAL SENSOR ASSEMBLY |
*2 |
STOP LIGHT SWITCH ASSEMBLY |
| *3 |
TRANSMISSION CONTROL SWITCH
(SHIFT LOCK CONTROL UNIT ASSEMBLY) |
*4 |
COMBINATION METER ASSEMBLY |
| *5 |
DLC3 |
*6 |
ENGINE STOP AND START ECU |
