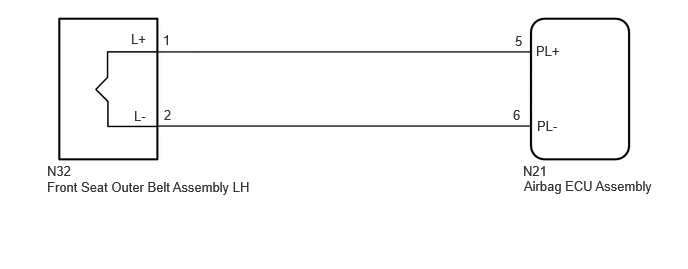

DTC B1905: Short in P/T Squib (LH) Circuit; DTC B1906: Open in P/T Squib (LH) Circuit; DTC B1907: Short in P/T Squib (LH) Circuit (to Ground); DTC B1908: Short in P/T Squib (LH) Circuit (to +B) [08/2020 - ]: Wiring Diagram
WARNING: This page is about a different car, the 2025 Toyota RAV4, 2024 Toyota RAV4, 2023 Toyota RAV4, 2022 Toyota RAV4, and 2021 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
