Section 1 (Power Back Door System - Diagnostics - Introduction)
>>
Power Back Door System
>>

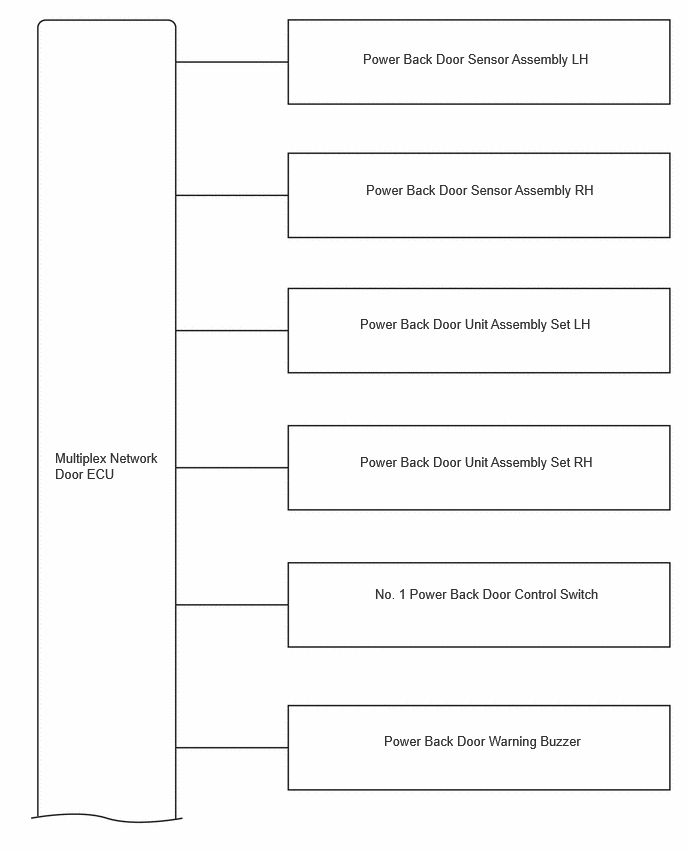

System Diagram [10/2023 - ]
>>

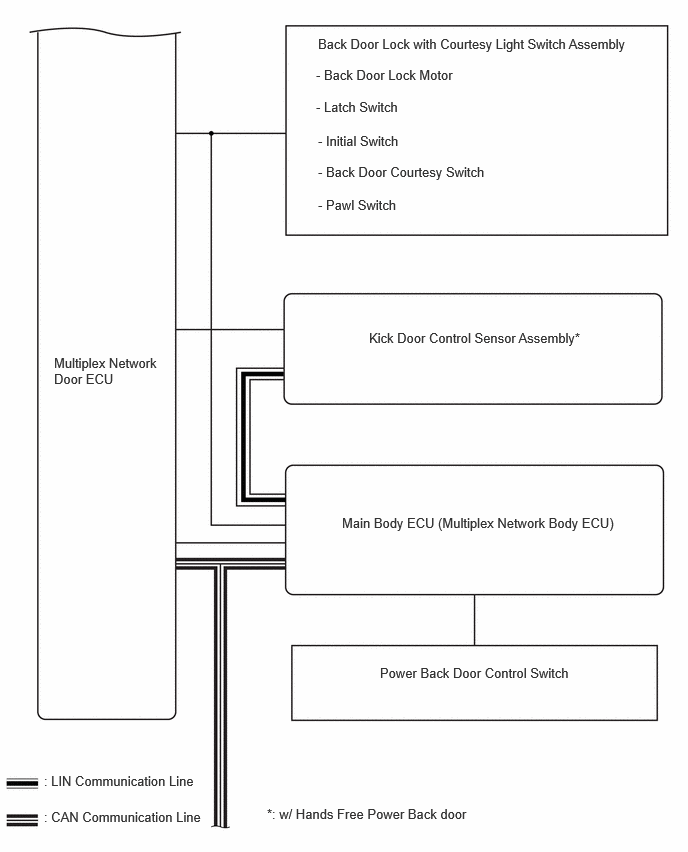

System Diagram [10/2023 - ]
System Diagram [10/2023 - ]
