Removal [02/2019 - 08/2020]: Procedure

  1. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to REMOVAL [11/2018 - 08/2020]

  2. REMOVE EGR VALVE ASSEMBLY

    Refer to REMOVAL [11/2018 - 08/2020]

  3. REMOVE E.F.I. VACUUM SENSOR ASSEMBLY (MANIFOLD ABSOLUTE PRESSURE SENSOR)

    Refer to PROCEDURE - Step 1

  4. DISCONNECT ENGINE WIRE
    1. Remove the bolt.
      GTY915005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the wire harness clamp and disconnect the engine wire.
  5. REMOVE NO. 2 WATER BY-PASS PIPE

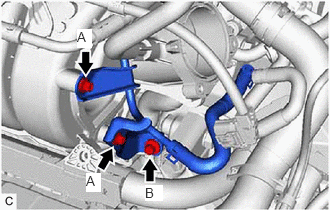

    1. Using an 8 mm socket wrench, remove the 2 bolts (A) and disconnect the No. 2 water by-pass pipe from the intake manifold.
      GTY751309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt (B) and No. 2 water by-pass pipe from the cylinder block sub-assembly.
  6. DISCONNECT NO. 3 WATER BY-PASS PIPE
    1. Slide the clip and disconnect the No. 5 water by-pass hose from the No. 3 water by-pass pipe.
      GTY754209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using an 8 mm socket wrench, remove the bolt and disconnect the No. 3 water by-pass pipe from the intake manifold.
  7. DISCONNECT NO. 2 FUEL VAPOR FEED HOSE

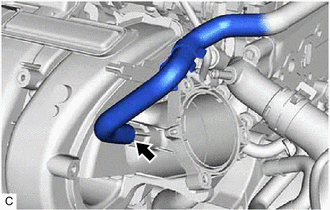

    1. Disconnect the No. 2 fuel vapor feed hose from the intake manifold.
      GTY754210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE INTAKE MANIFOLD
    1. w/o Stud Bolt:
      GTY771539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

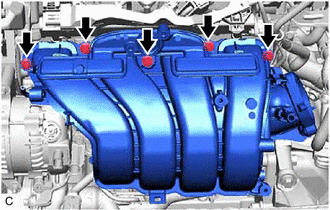

      1. Remove the 5 bolts and intake manifold from the cylinder head sub-assembly.
    2. w/ Stud Bolt:
      GTY928879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
      1. Remove the 3 bolts, 2 nuts and intake manifold from the cylinder head sub-assembly.
  9. REMOVE NO. 1 INTAKE MANIFOLD TO HEAD GASKET

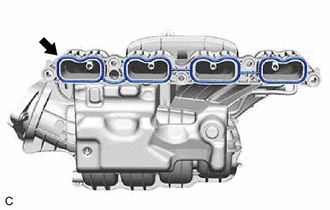

    1. Remove the No. 1 intake manifold to head gasket from the intake manifold.
      GTY754211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE NO. 1 ENGINE COVER

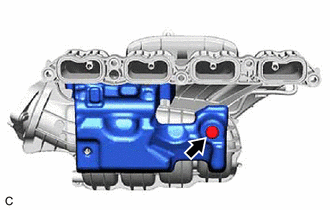

    1. Remove the clip and No. 1 engine cover.
      GTY771536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE VACUUM HOSE

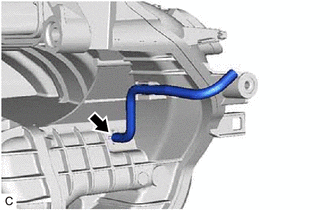

    1. Remove the vacuum hose from the intake manifold.
      GTY744642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
