Removal [11/2018 - ]: Procedure

Refer to REMOVAL [11/2018 - 02/2019] , or refer to REMOVAL [02/2019 - 08/2020] , or refer to REMOVAL [08/2020 - ]

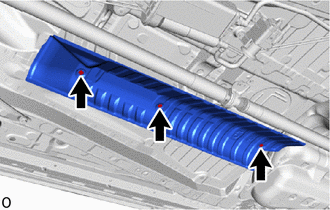

1. w/ Floor Under Cover:

   Remove the 3 nuts and lower No. 1 front floor heat insulator.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

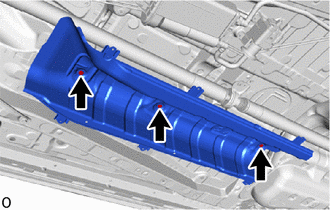

2. w/o Floor Under Cover:

   Remove the 3 nuts and lower No. 1 front floor heat insulator.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 bolts and 2 center No. 2 support bearing washers, and disconnect the propeller with center bearing shaft assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • During the removal, do not exert excessive force on the universal joint.
   • When removing, transporting or storing the propeller with center bearing shaft assembly, do not allow the No. 2 joint angle to exceed 20°.

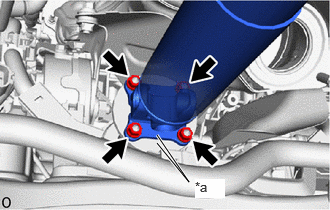

2. Place matchmarks on the differential carrier assembly and propeller with center bearing shaft assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

3. Remove the 4 nuts and 4 washers, and disconnect the propeller with center bearing shaft assembly from the differential carrier assembly.

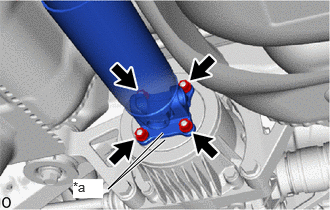

4. Place matchmarks on the transfer assembly and propeller with center bearing shaft assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

5. Remove the 4 nuts and 4 washers, and disconnect the propeller with center bearing shaft assembly from the transfer assembly.
