System Diagram [12/2021 - 10/2022]

Fig 1: Electronically Controlled Brake System Diagram (W/O Vacuum Brake Booster) (1 of 7)
GTY1116034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Electronically Controlled Brake System Diagram (W/O Vacuum Brake Booster) (2 of 7)
GTY974324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Electronically Controlled Brake System Diagram (W/O Vacuum Brake Booster) (3 of 7)
GTY1118557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Electronically Controlled Brake System Diagram (W/O Vacuum Brake Booster) (4 of 7)
GTY1113453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

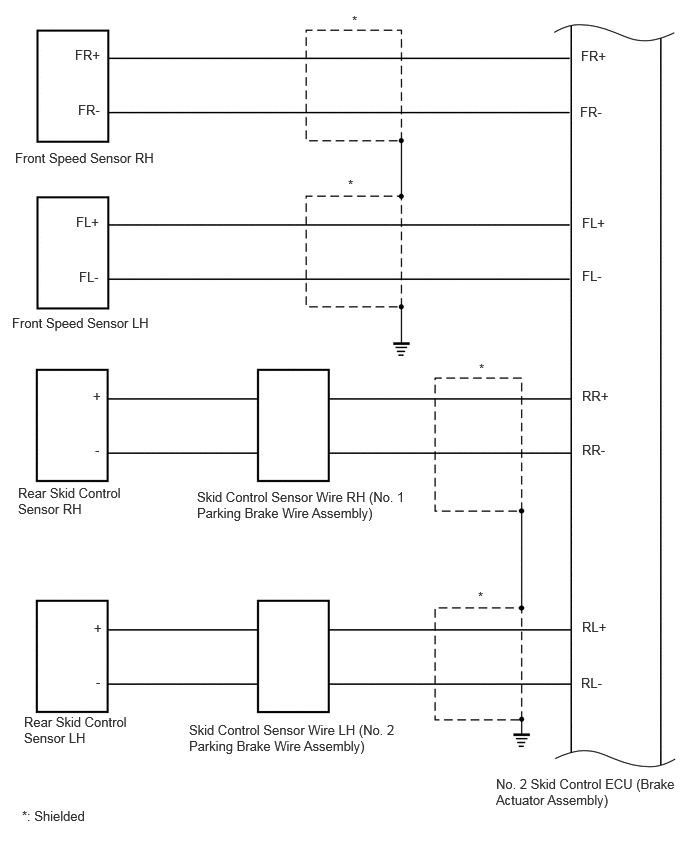

Fig 5: Electronically Controlled Brake System Diagram (W/O Vacuum Brake Booster) (5 of 7)
GTY975699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 6: Electronically Controlled Brake System Diagram (W/O Vacuum Brake Booster) (6 of 7)
GTY1117183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 7: Electronically Controlled Brake System Diagram (W/O Vacuum Brake Booster) (7 of 7)
GTY1110656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
