System Diagram [11/2018 - 08/2020]

WARNING: This page is about a different variant/trim than selected.

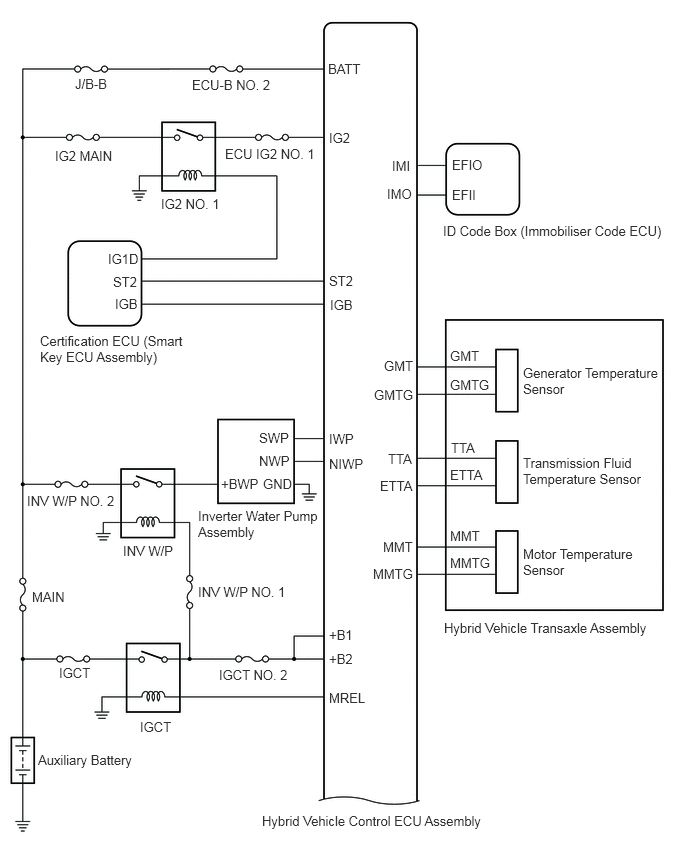

GTY889965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

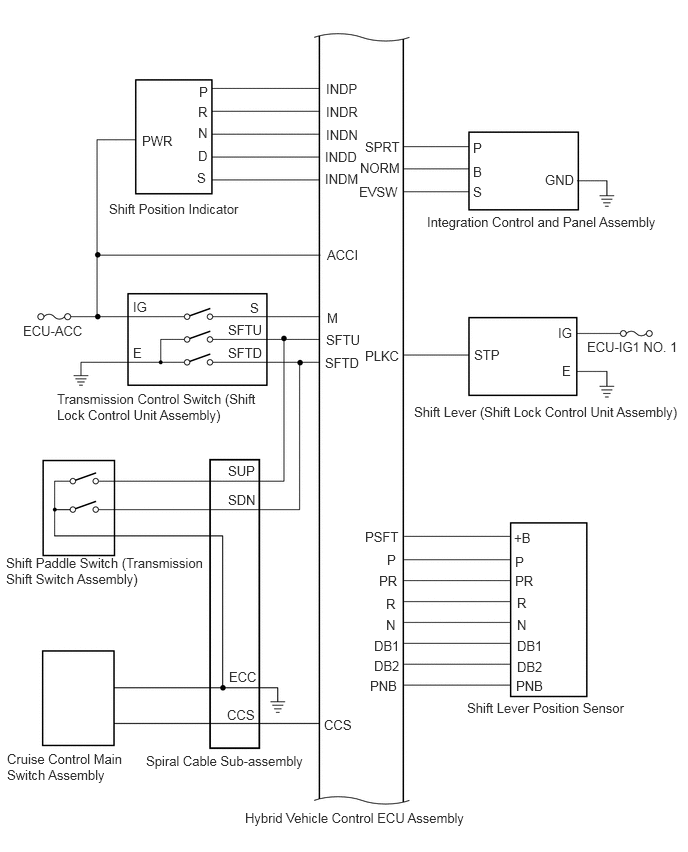

GTY910418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

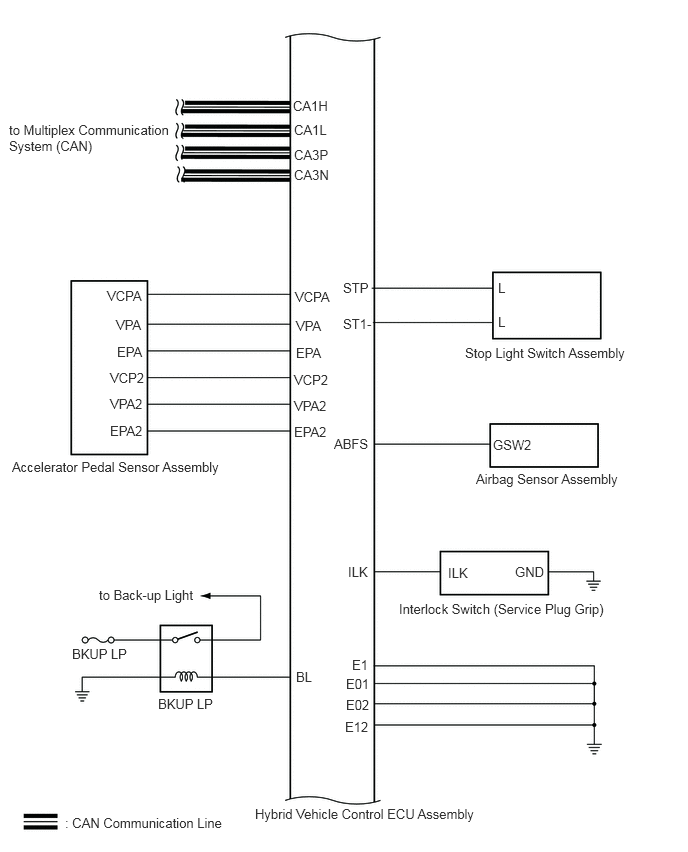

GTY844919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

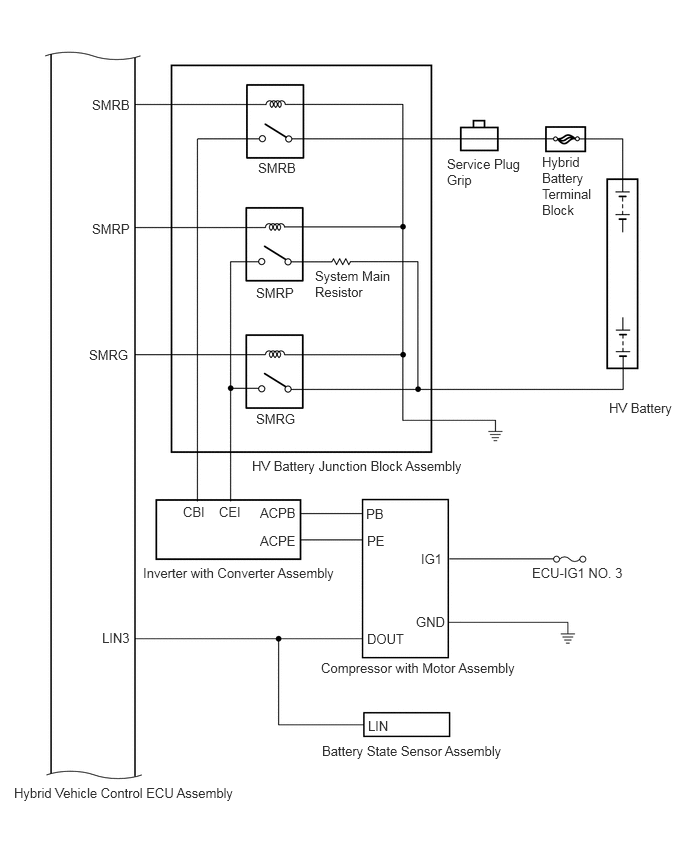

GTY908336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

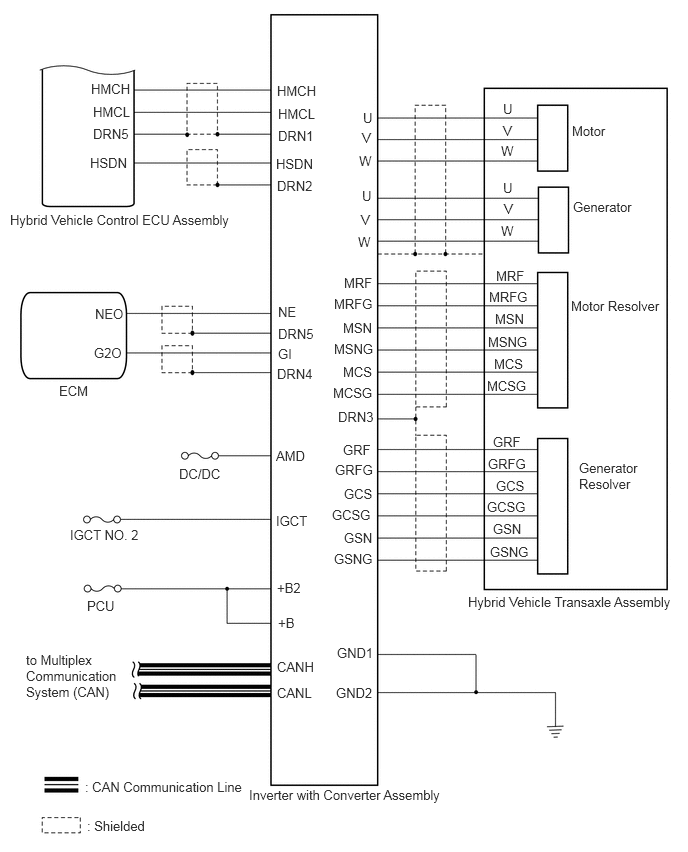

GTY926140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

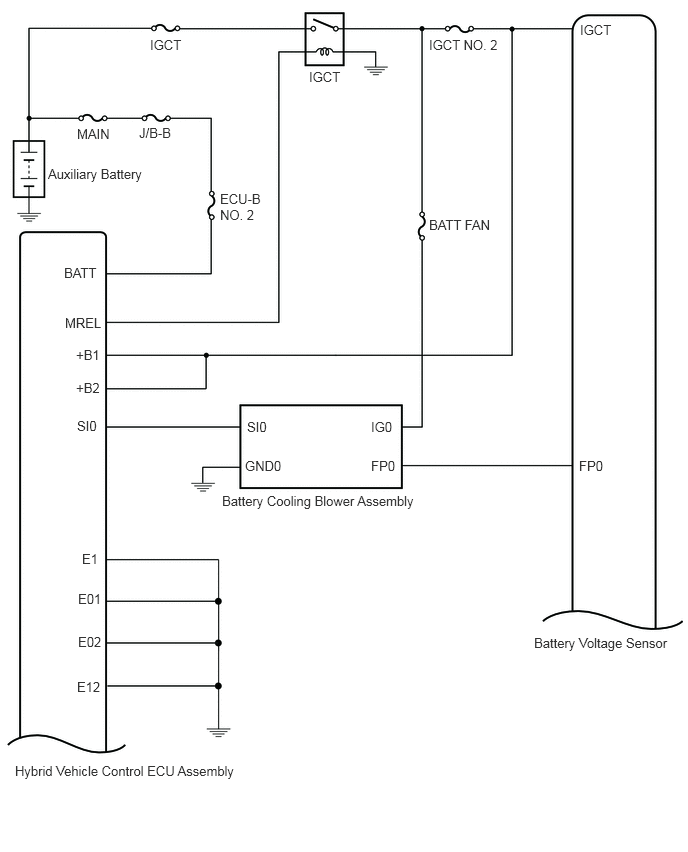

GTY937639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

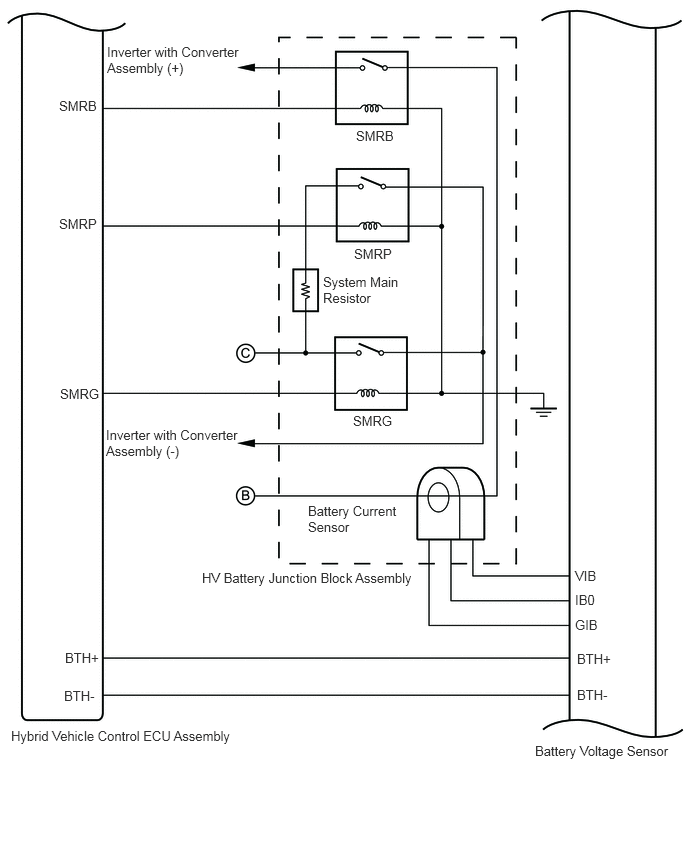

GTY928337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

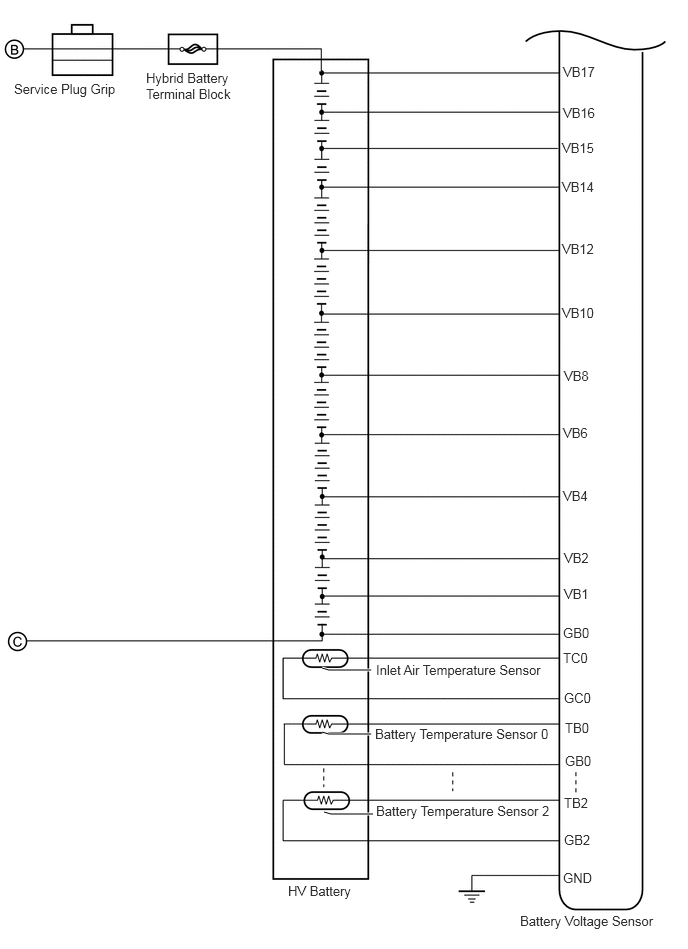

GTY749378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
