DTC P0A81-96: Hybrid/EV Battery Cooling Fan 1 Component Internal Failure; DTC P0A81-98: Hybrid/EV Battery Cooling Fan 1 Component or System Over Temperature [06/2020 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2025 Toyota RAV4, 2024 Toyota RAV4, 2023 Toyota RAV4, 2022 Toyota RAV4, and 2021 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

CHECK DTC OUTPUT (HV BATTERY, HYBRID CONTROL)

Connect the Techstream to the DLC3.
Turn the ignition switch to ON.
Enter the following menus: Powertrain / HV Battery and Hybrid Control / Trouble Codes.

Check for DTCs.

Powertrain > HV Battery > Trouble Codes

Powertrain > Hybrid Control > Trouble Codes

Result

Result	Proceed to
"P0A81-96 or P0A81-98" only is output, or DTCs except the ones in the table below are also output.	A
DTCs of hybrid battery system in the table below are output.	B
DTCs of hybrid control system in the table below are output.	C

System	Relevant DTC
Hybrid battery system	P060A-47	Hybrid/EV Battery Energy Control Module Monitoring Processor Watchdog / Safety MCU Failure
	P060B-49	Hybrid/EV Battery Energy Control Module A/D Processing Internal Electronic Failure
	P0606-87	Hybrid/EV Battery Energy Control Module Processor to Monitoring Processor Missing Message
Hybrid control system	P0A1F-94	Hybrid/EV Battery Energy Control Module Unexpected Operation

Turn the ignition switch off.

Result:

GO TO DTC CHART (HYBRID BATTERY SYSTEM)

Refer to DIAGNOSTIC TROUBLE CODE CHART [06/2020 - ]

Result:

GO TO DTC CHART (HYBRID CONTROL SYSTEM)

Refer to DIAGNOSTIC TROUBLE CODE CHART [06/2020 - 12/2021] , or refer to DIAGNOSTIC TROUBLE CODE CHART [12/2021 - 11/2024] , or refer to DIAGNOSTIC TROUBLE CODE CHART [11/2024 - ]

Result:

See step 2

CHECK DUCT AND BLOWER

WARNING:

Be sure to wear insulated gloves.

Check that the service plug grip is not installed.
NOTE:
After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the appropriate service information because this may cause a malfunction.
Remove the rear seat cushion leg sub-assembly.
Refer to PROCEDURE - Step 8

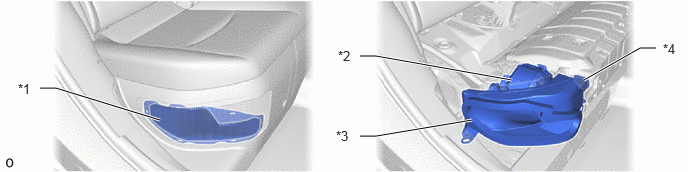

Check that the No. 1 HV battery intake filter, battery cooling blower assembly and No. 1 hybrid battery intake duct are not disconnected, damaged, or clogged with foreign matter.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	No. 1 HV Battery Intake Filter	*2	Battery Cooling Blower Assembly
*3	No. 1 Hybrid Battery Intake Duct	*4	No. 1 Hybrid Battery Intake Duct LH

The No. 1 HV battery intake filter, No. 1 hybrid battery intake duct, No. 1 hybrid battery intake duct LH and battery cooling blower assembly blower are not disconnected, damaged, or clogged with foreign matter.

Install the rear seat cushion leg sub-assembly.

Result

Proceed to
OK
NG

Result:

CORRECT THE PROBLEM

Result:

See step 3

CHECK HARNESS AND CONNECTOR (BATTERY ECU ASSEMBLY - BATTERY COOLING BLOWER ASSEMBLY)
See step 3

Result

Proceed to

OK

NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step 4
CHECK HARNESS AND CONNECTOR (BATTERY ECU ASSEMBLY - BATTERY COOLING BLOWER ASSEMBLY)
See step 9

Result

Proceed to

OK

NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step 5

CHECK BATTERY ECU ASSEMBLY (GROUND SHORT CHECK)

Remove the battery ECU assembly.
Refer to REMOVAL [06/2020 - 08/2020] , or refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]

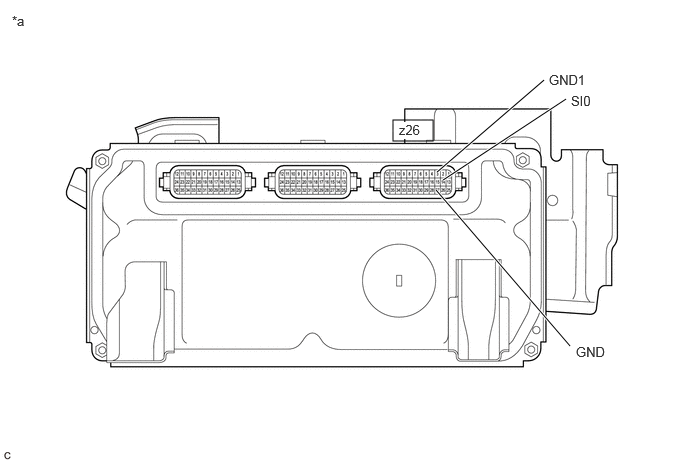

Measure the resistance according to the value(s) in the table below.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Component without harness connected
(Battery ECU Assembly)

Standard Resistance

Tester Connection	Condition	Specified Condition
z26-14 (SI0) -z26-27 (GND)	Ignition switch off	10 kΩ or higher
z26-14 (SI0) -z26-3 (GND1)	Ignition switch off	10 kΩ or higher

Install the battery ECU assembly.

Result

Proceed to
OK
NG

Result:

REPLACE BATTERY ECU ASSEMBLY

Refer to REMOVAL [06/2020 - 08/2020] , or refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]

Result:

See step 6

READ VALUE USING TECHSTREAM (COOLING FAN FREQUENCY)

See step 4

Result

Result	Proceed to
Both of the value in the Data List (Hybrid/EV Battery Cooling Fan 1 Frequency) and the actual measured value at the floor wire connector are 0 Hz.	A
Other than above	B

Result:

See step 8

Result:

See step 7

CHECK BATTERY ECU ASSEMBLY
See step 5

Result

Proceed to

OK

NG

Result:

OK

REPLACE BATTERY COOLING BLOWER ASSEMBLY

Refer to REMOVAL [11/2018 - ]

Result:

NG

REPLACE BATTERY ECU ASSEMBLY

Refer to REMOVAL [06/2020 - 08/2020] , or refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]
CHECK BATTERY ECU ASSEMBLY (FREQUENCY)
See step 6

Result

Proceed to

OK

NG

Result:

OK

REPLACE BATTERY COOLING BLOWER ASSEMBLY

Refer to REMOVAL [11/2018 - ]

Result:

NG

REPLACE BATTERY ECU ASSEMBLY

Refer to REMOVAL [06/2020 - 08/2020] , or refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]
