Components [04/2018 -]
WARNING: This page is about a different car, the 2022 Toyota Avalon, 2021 Toyota Avalon, 2020 Toyota Avalon, and 2019 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

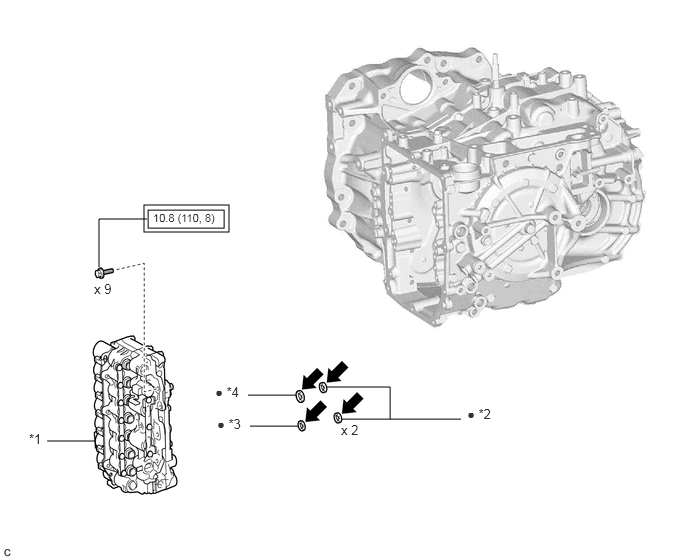

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
TRANSMISSION VALVE BODY ASSEMBLY |
*2 |
TRANSAXLE CASE GASKET |
| *3 |
NO. 1 FRONT OIL PUMP COVER GASKET |
*4 |
NO. 2 FRONT OIL PUMP COVER GASKET |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
• |
Non-reusable part |
|
Toyota Genuine ATF WS |
- |
- |

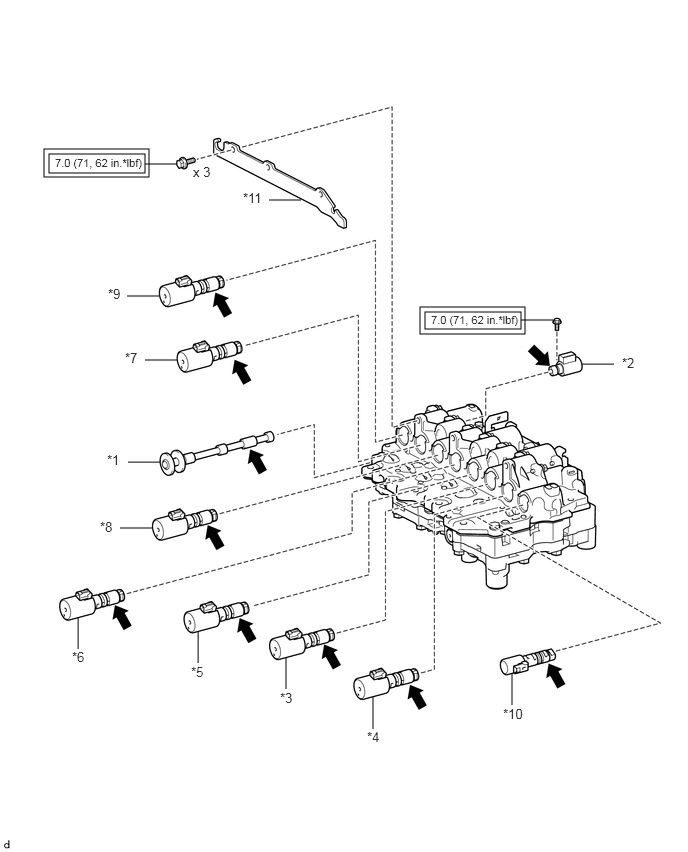

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
MANUAL VALVE |
*2 |
SOLENOID (SL) VALVE |
| *3 |
SOLENOID (SL1) VALVE |
*4 |
SOLENOID (SL2) VALVE |
| *5 |
SOLENOID (SL3) VALVE |
*6 |
SOLENOID (SL4) VALVE |
| *7 |
SOLENOID (SL5) VALVE |
*8 |
SOLENOID (SL6) VALVE |
| *9 |
SOLENOID (SLU) VALVE |
*10 |
SOLENOID (SLT) VALVE |
| *11 |
SOLENOID LOCK PLATE |
- |
- |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
|
Toyota Genuine ATF WS |
