Installation [11/2015 -]: Procedure

  1. INSTALL LIGHT CONTROL RHEOSTAT (COMBINATION SWITCH ASSEMBLY)

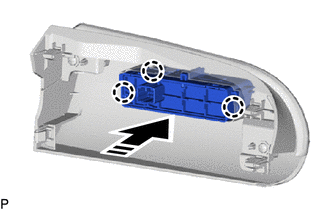

    1. Engage the 3 claws to install the light control rheostat (combination switch assembly) as shown in the illustration.
      GTY566141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY

    Refer to PROCEDURE - Step 25 [11/2015 - 11/2017] , or refer to PROCEDURE - Step 27 [11/2017 - 08/2019] , or refer to PROCEDURE - Step 26 [08/2019 -]
