Inspection [09/2016 - ]: Procedure
- INSPECT FUEL LID LOCK WITH MOTOR ASSEMBLY
- Check the operation of the fuel lid lock with motor assembly (motor operation).
- Apply auxiliary battery voltage to the fuel lid lock with motor assembly connector, and measure the shaft stroke.
Standard
Auxiliary Battery Connection Specified Condition Auxiliary battery positive (+) → Terminal 1
Auxiliary battery negative (-) → Terminal 216.80 mm
(0.661 in.)If the result is not as specified, replace the fuel lid lock with motor assembly.

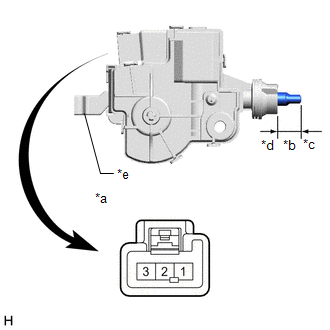

*a Component without harness connected
(Fuel Lid Lock with Motor Assembly)*b Shaft Stroke *c Shaft not pushed *d Shaft Pushed *e Lever
- Apply auxiliary battery voltage to the fuel lid lock with motor assembly connector, and measure the shaft stroke.
- Check the operation of the fuel lid lock with motor assembly (fuel lid courtesy switch).
- Measure the resistance according the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 2 - 3 Shaft not pushed (ON)
(Shaft stroke is below 0.73 mm (0.029 in.).)Below 1 Ω 2 - 3 Shaft pushed (OFF)
(Shaft stroke is more than 0.73 mm (0.029 in.).)10 kΩ or higher If the result is not as specified, replace the fuel lid lock with motor assembly.
- Measure the resistance according the value(s) in the table below.
- Measure the shaft stroke.
Standard
Area Condition Specified Condition Shaft stroke Lever pulled 16.80 mm
(0.661 in.)If the result is not as specified, replace the fuel lid lock with motor assembly.
- Check the operation of the fuel lid lock with motor assembly (motor operation).
