Inspection [09/2016 - ]: Procedure
- INSPECT CHARGE LID LOCK WITH MOTOR ASSEMBLY
- Check the operation of the charge lid lock with motor assembly (motor operation).
- Apply auxiliary battery voltage to the charge lid lock with motor assembly connector, and check the operation of the charge lid lock with motor assembly.
OK
Auxiliary Battery Connection Specified Condition Auxiliary battery positive (+) → Terminal 1
Auxiliary battery negative (-) → Terminal 2Shaft not extended If the result is not as specified, replace the charge lid lock with motor assembly.

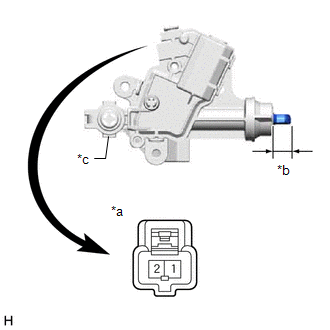

*a Component without harness connected
(Charge Lid Lock with Motor Assembly)*b Shaft Stroke *c Lever
- Apply auxiliary battery voltage to the charge lid lock with motor assembly connector, and check the operation of the charge lid lock with motor assembly.
- Measure the shaft stroke.
OK
Area Condition Specified Condition Shaft stroke Lever pulled 11 mm
(0.433 in.)If the result is not as specified, replace the charge lid lock with motor assembly.
- Check the operation of the charge lid lock with motor assembly (motor operation).
