Components [09/2016 - 05/2019]

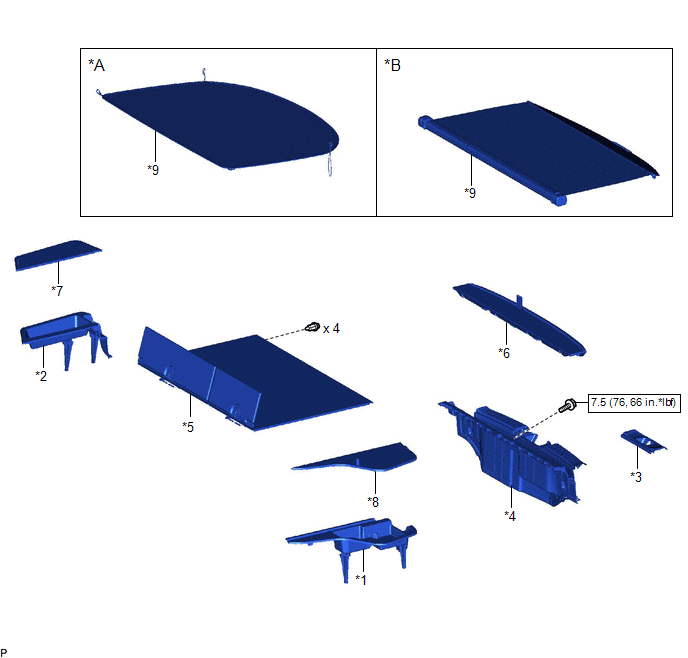

Fig 1: Charge Lid Courtesy Switch Replacement Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/o Garage Door Opener System	*B	w/ Garage Door Opener System
*1	DECK FLOOR BOX LH	*2	DECK FLOOR BOX RH
*3	DECK TRIM SERVICE HOLE COVER	*4	REAR DECK TRIM COVER
*5	REAR NO. 1 FLOOR BOARD	*6	REAR NO. 2 FLOOR BOARD
*7	REAR NO. 3 FLOOR BOARD	*8	REAR NO. 4 FLOOR BOARD
*9	TONNEAU COVER ASSEMBLY	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

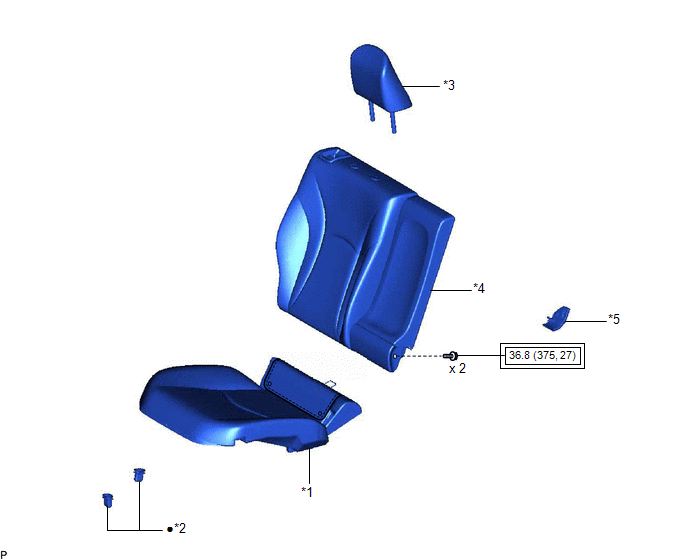

Fig 2: Charge Lid Courtesy Switch Replacement Components With Torque Specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	REAR SEAT CUSHION ASSEMBLY RH	*2	REAR SEAT CUSHION LOCK HOOK
*3	REAR SEAT HEADREST ASSEMBLY	*4	REAR SEATBACK ASSEMBLY RH
*5	REAR SEATBACK HINGE COVER	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	•	Non-reusable part

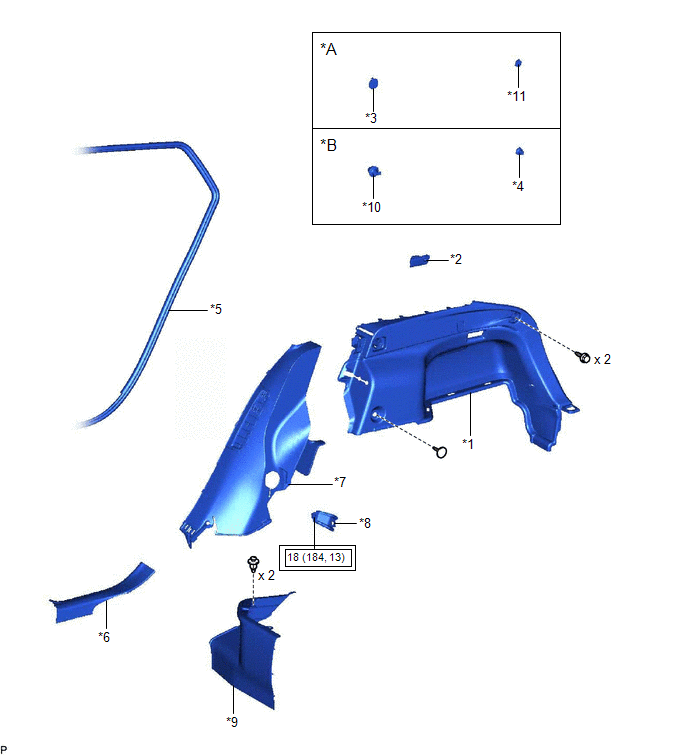

Fig 3: Charge Lid Courtesy Switch Replacement Components With Torque Specifications (3 Of 4)

Callout	Description	Callout	Description
*A	w/ Garage Door Opener System	*B	w/o Garage Door Opener System
*1	DECK TRIM SIDE PANEL ASSEMBLY RH	*2	NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
*3	NO. 1 TONNEAU COVER HOLDER CAP	*4	NO. 2 ROPE HOOK
*5	REAR DOOR OPENING TRIM WEATHERSTRIP RH	*6	REAR DOOR SCUFF PLATE RH
*7	REAR SEAT SIDE GARNISH RH	*8	REAR SEATBACK HINGE SUB-ASSEMBLY RH
*9	REAR UNDER SIDE COVER RH	*10	ROPE HOOK
*11	TONNEAU COVER HOOK A	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	-	-

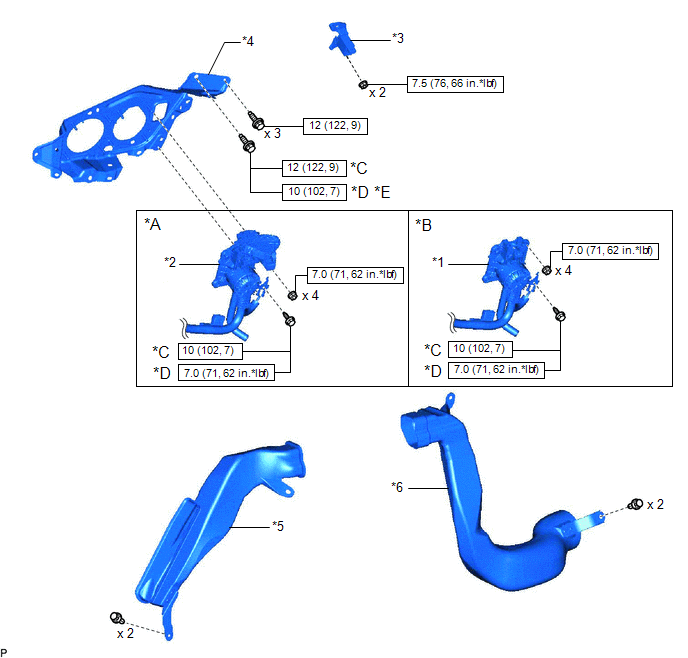

Fig 4: Charge Lid Courtesy Switch Replacement Components With Torque Specifications (4 Of 4)

Callout	Description	Callout	Description
*A	w/ Cable EV Charger Lock Assembly	*B	w/o Cable EV Charger Lock Assembly
*C	for Type A	*D	for Type B
*E	for Type C	-	-
*1	AC CHARGER INLET CABLE	*2	AC CHARGER INLET CABLE WITH CABLE EV CHARGER LOCK ASSEMBLY
*3	EV CHARGER LID SWITCH ASSEMBLY	*4	FUEL FILLER OPENING LID LOCK BRACKET
*5	NO. 1 HYBRID BATTERY INTAKE DUCT	*6	NO. 2 HYBRID BATTERY INTAKE DUCT
	Nm (kgfcm, ft.*lbf): Specified torque	-	-
