Components [05/2019 - 07/2020]

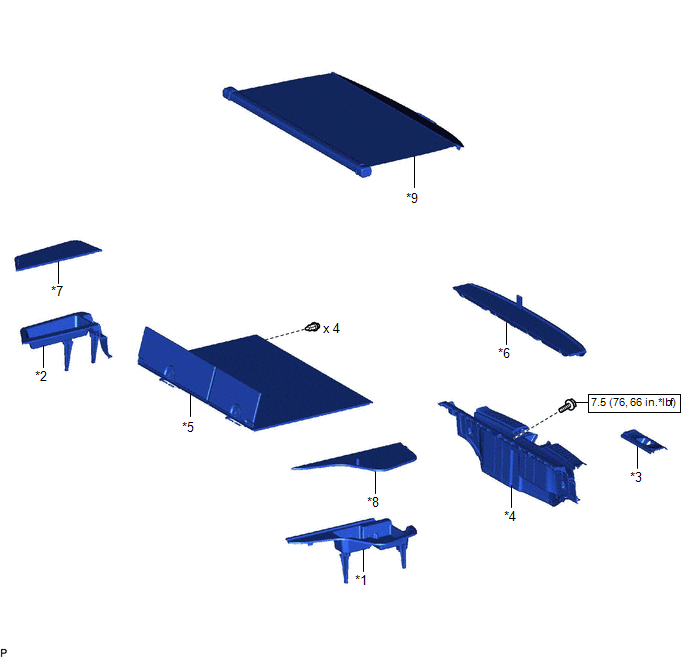

| Callout | Description | Callout | Description |
| *1 | DECK FLOOR BOX LH | *2 | DECK FLOOR BOX RH |
| *3 | DECK TRIM SERVICE HOLE COVER | *4 | REAR DECK TRIM COVER |
| *5 | REAR NO. 1 FLOOR BOARD | *6 | REAR NO. 2 FLOOR BOARD |
| *7 | REAR NO. 3 FLOOR BOARD | *8 | REAR NO. 4 FLOOR BOARD |
| *9 | TONNEAU COVER ASSEMBLY | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

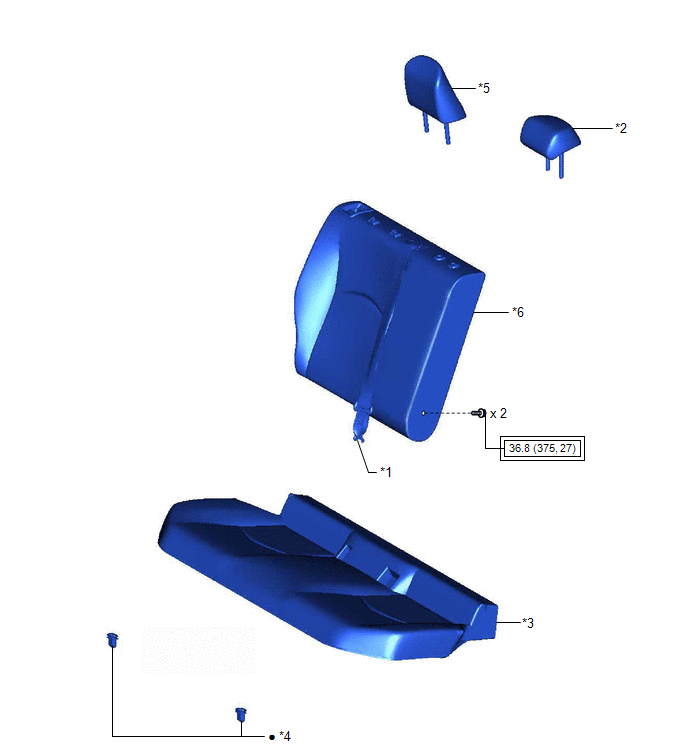

| Callout | Description | Callout | Description |
| *1 | REAR CENTER SEAT OUTER BELT ASSEMBLY | *2 | REAR SEAT CENTER HEADREST ASSEMBLY |
| *3 | REAR SEAT CUSHION ASSEMBLY | *4 | REAR SEAT CUSHION LOCK HOOK |
| *5 | REAR SEAT HEADREST ASSEMBLY | *6 | REAR SEATBACK ASSEMBLY RH |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part |

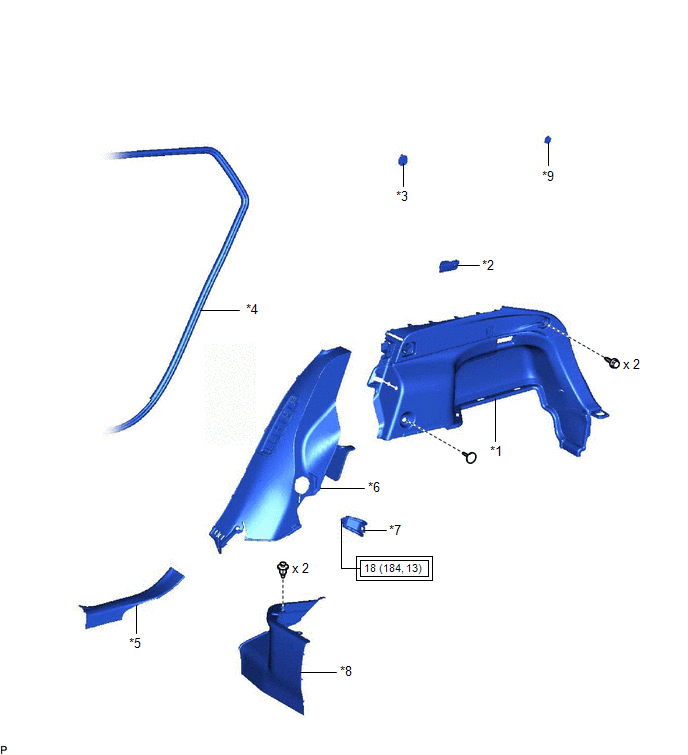

| Callout | Description | Callout | Description |
| *1 | DECK TRIM SIDE PANEL ASSEMBLY RH | *2 | NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY |
| *3 | NO. 1 TONNEAU COVER HOLDER CAP | *4 | REAR DOOR OPENING TRIM WEATHERSTRIP RH |
| *5 | REAR DOOR SCUFF PLATE RH | *6 | REAR SEAT SIDE GARNISH RH |
| *7 | REAR SEATBACK HINGE SUB-ASSEMBLY RH | *8 | REAR UNDER SIDE COVER RH |
| *9 | TONNEAU COVER HOOK A | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
| Callout | Description | Callout | Description |
| *A | w/ Cable EV Charger Lock Assembly | *B | w/o Cable EV Charger Lock Assembly |
| *C | for Type A | *D | for Type B |
| *E | for Type C | - | - |
| *1 | AC CHARGER INLET CABLE | *2 | AC CHARGER INLET CABLE WITH CABLE EV CHARGER LOCK ASSEMBLY |
| *3 | EV CHARGER LID SWITCH ASSEMBLY | *4 | FUEL FILLER OPENING LID LOCK BRACKET |
| *5 | NO. 1 HYBRID BATTERY INTAKE DUCT | *6 | NO. 2 HYBRID BATTERY INTAKE DUCT |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
