Adjustment [09/2016 - ]: Procedure

INSPECT BACK DOOR

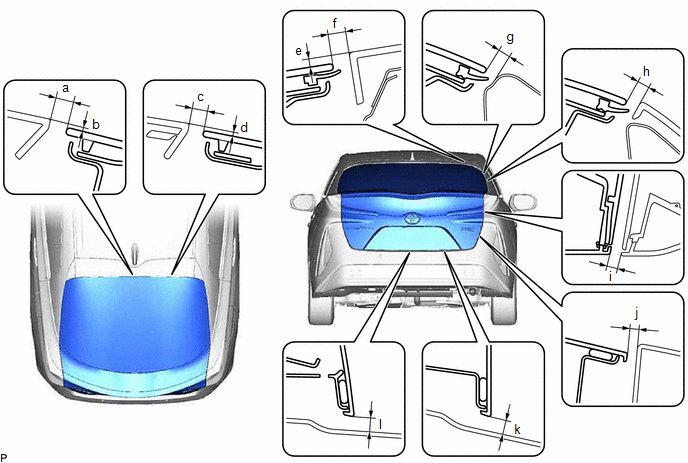

Check that the clearance measurements of areas a through l are within each standard range.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

STANDARD CLEARANCE

Area	Measurement	Area	Measurement
a	5.6 to 10.6 mm (0.22 to 0.417 in.)	b	-0.5 to 4.5 mm (-0.0197 to 0.177 in.)
c	5.6 to 10.6 mm (0.22 to 0.417 in.)	d	-0.5 to 4.5 mm (-0.0197 to 0.177 in.)
e	1.7 to 6.7 mm (0.0669 to 0.264 in.)	f	5.6 to 10.6 mm (0.22 to 0.417 in.)
g	3.35 to 8.35 mm (0.132 to 0.329 in.)	h	3.5 to 8.5 mm (0.138 to 0.335 in.)
i	3.7 to 8.7 mm (0.146 to 0.343 in.)	j	3.7 to 8.7 mm (0.146 to 0.343 in.)
k	7.5 to 11.5 mm (0.295 to 0.453 in.)	l	7.5 to 11.5 mm (0.295 to 0.453 in.)

REMOVE DECK TRIM SERVICE HOLE COVER

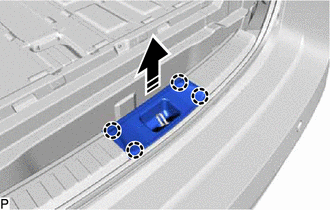

Disengage the 4 claws to remove the deck trim service hole cover as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

ADJUST BACK DOOR

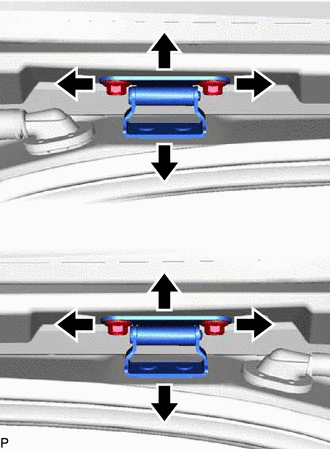

Loosen the 4 hinge bolts on the back door and adjust the back door position.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Tighten the 4 hinge bolts on the back door after adjustment.
Torque: 31 N*m (316 kgf*cm, 23 ft.*lbf)

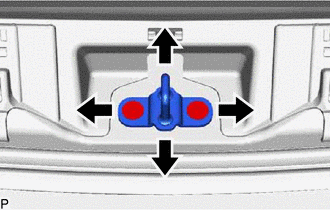

Using a T40 "TORX" socket wrench, slightly loosen the 2 striker mounting screws.

Using a brass bar and a hammer, hit the striker to adjust its position.
Using a T40 "TORX" socket wrench, tighten the 2 striker mounting screws after adjustment.
Torque: 23 N*m (235 kgf*cm, 17 ft.*lbf)

INSTALL DECK TRIM SERVICE HOLE COVER

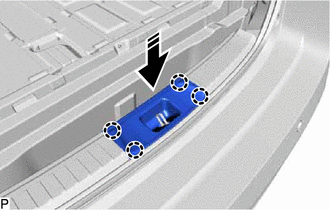

Engage the 4 claws to install the deck trim service hole cover as shown in the illustration.

Install in this Direction
