Components [11/2015 - 12/2018]

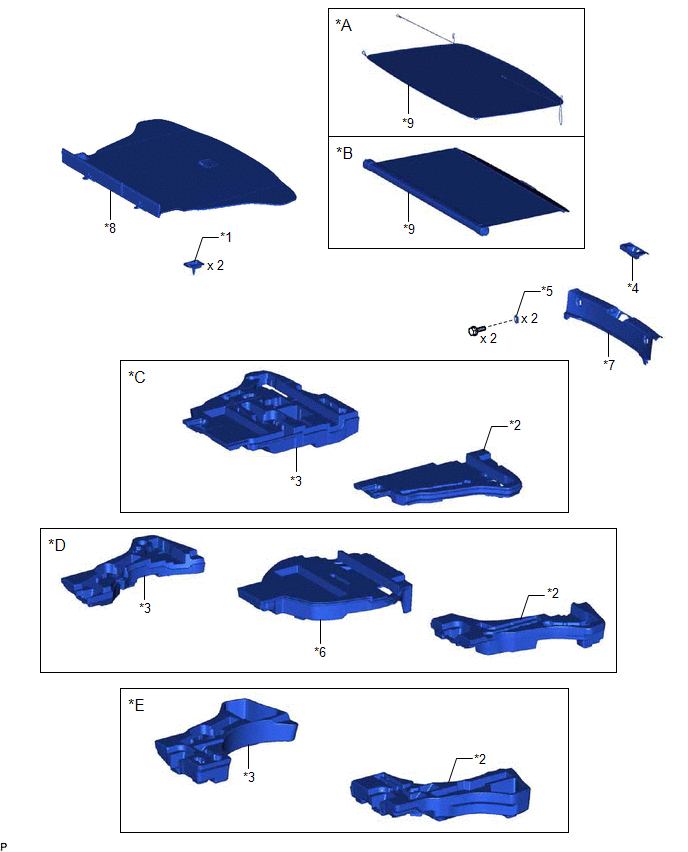

| *A | w/o Blind Spot Monitor System | *B | w/ Blind Spot Monitor System |
| *C | w/o Spare Tire | *D | w/ Compact Spare Tire |
| *E | w/ Full Size Spare Tire | - | - |
| *1 | DECK BOARD RETAINER | *2 | DECK FLOOR BOX LH |
| *3 | DECK FLOOR BOX RH | *4 | DECK TRIM SERVICE HOLE COVER |
| *5 | LUGGAGE HOLD BELT STRIKER ASSEMBLY | *6 | REAR DECK FLOOR BOX |
| *7 | REAR DECK TRIM COVER | *8 | REAR NO. 1 FLOOR BOARD |
| *9 | TONNEAU COVER ASSEMBLY | - | - |

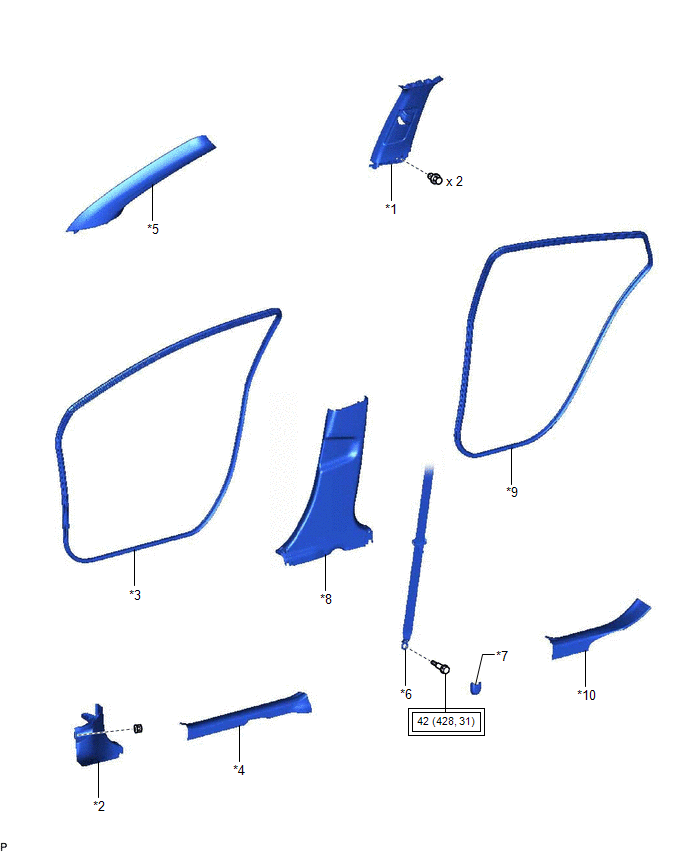

| Callout | Description | Callout | Description |
| *1 | CENTER PILLAR GARNISH ASSEMBLY LH | *2 | COWL SIDE TRIM BOARD LH |
| *3 | FRONT DOOR OPENING TRIM WEATHERSTRIP LH | *4 | FRONT DOOR SCUFF PLATE LH |
| *5 | FRONT PILLAR GARNISH LH | *6 | FRONT SEAT OUTER BELT ASSEMBLY LH |
| *7 | LAP BELT OUTER ANCHOR COVER | *8 | LOWER CENTER PILLAR GARNISH LH |
| *9 | REAR DOOR OPENING TRIM WEATHERSTRIP LH | *10 | REAR DOOR SCUFF PLATE LH |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf.cm, ft./lbf) | - | - |

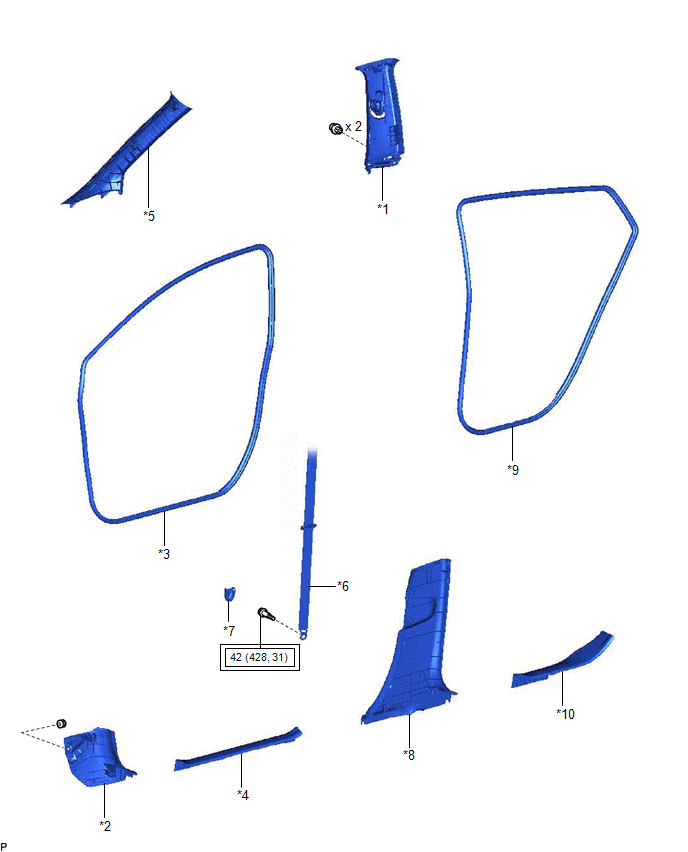

| Callout | Description | Callout | Description |
| *1 | CENTER PILLAR GARNISH ASSEMBLY RH | *2 | COWL SIDE TRIM BOARD RH |
| *3 | FRONT DOOR OPENING TRIM WEATHERSTRIP RH | *4 | FRONT DOOR SCUFF PLATE RH |
| *5 | FRONT PILLAR GARNISH RH | *6 | FRONT SEAT OUTER BELT ASSEMBLY RH |
| *7 | LAP BELT OUTER ANCHOR COVER | *8 | LOWER CENTER PILLAR GARNISH RH |
| *9 | REAR DOOR OPENING TRIM WEATHERSTRIP RH | *10 | REAR DOOR SCUFF PLATE RH |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf.cm, ft./lbf) | - | - |

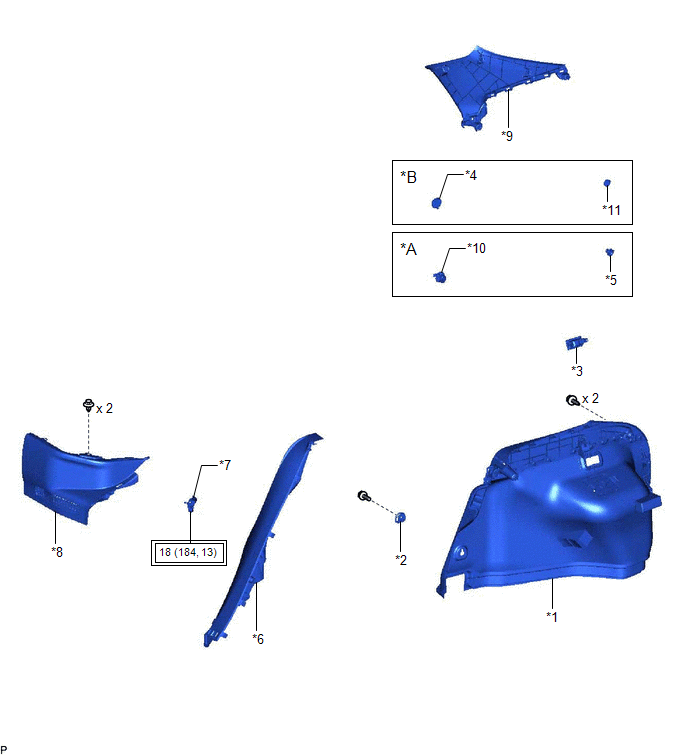

| Callout | Description | Callout | Description |
| *A | w/o Blind Spot Monitor System | *B | w/ Blind Spot Monitor System |
| *1 | DECK TRIM SIDE PANEL ASSEMBLY LH | *2 | LUGGAGE HOLD BELT STRIKER ASSEMBLY |
| *3 | NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY | *4 | NO. 1 TONNEAU COVER HOLDER CAP |
| *5 | NO. 2 ROPE HOOK | *6 | REAR SEAT SIDE GARNISH LH |
| *7 | REAR SEATBACK HINGE SUB-ASSEMBLY LH | *8 | REAR UNDER SIDE COVER LH |
| *9 | ROOF SIDE INNER GARNISH ASSEMBLY LH | *10 | ROPE HOOK |
| *11 | TONNEAU COVER HOOK A | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf.cm, ft./lbf) | - | - |

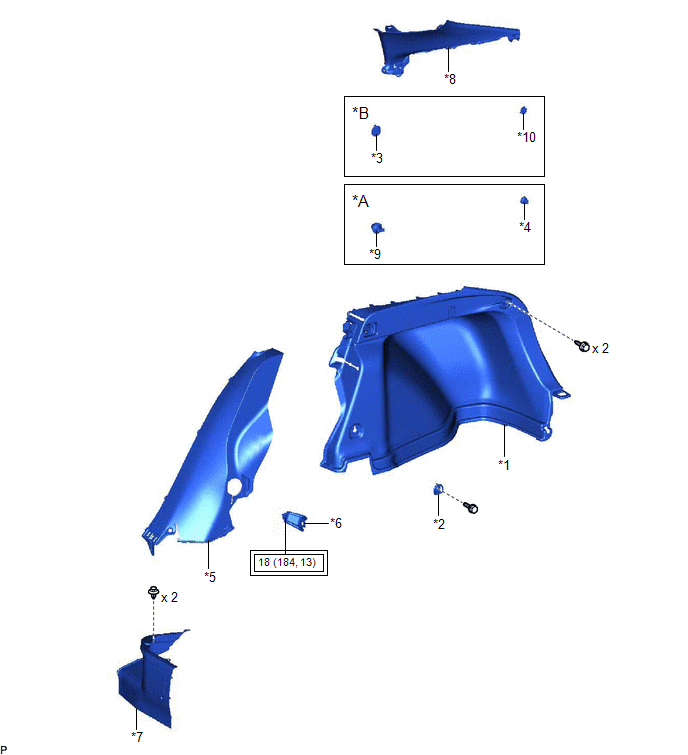

| Callout | Description | Callout | Description |
| *A | w/o Blind Spot Monitor System | *B | w/ Blind Spot Monitor System |
| *1 | DECK TRIM SIDE PANEL ASSEMBLY RH | *2 | LUGGAGE HOLD BELT STRIKER ASSEMBLY |
| *3 | NO. 1 TONNEAU COVER HOLDER CAP | *4 | NO. 2 ROPE HOOK |
| *5 | REAR SEAT SIDE GARNISH RH | *6 | REAR SEATBACK HINGE SUB-ASSEMBLY RH |
| *7 | REAR UNDER SIDE COVER RH | *8 | ROOF SIDE INNER GARNISH ASSEMBLY RH |
| *9 | ROPE HOOK | *10 | TONNEAU COVER HOOK A |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf.cm, ft./lbf) | - | - |

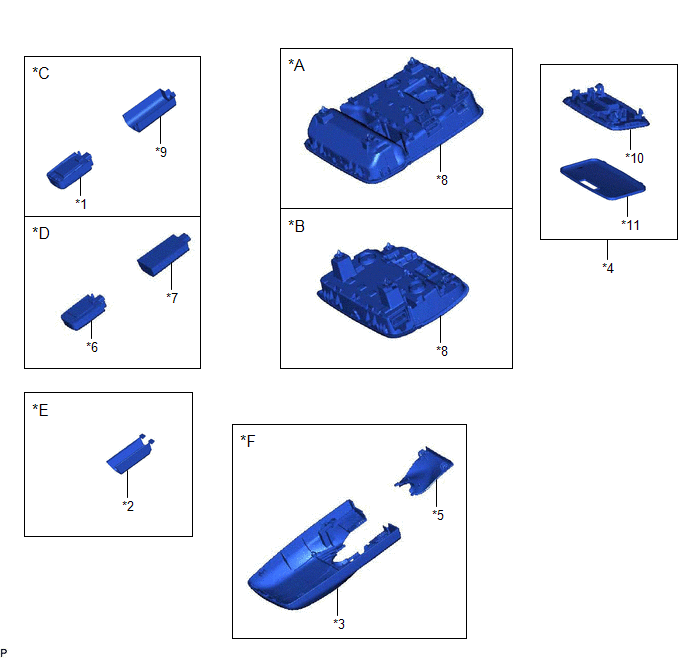

| *A | w/o Sliding Roof | *B | w/ Sliding Roof |
| *C | w/ Humidity Sensor | *D | w/ Rain Sensor |
| *E | w/ Inner Rear View Mirror Stay Holder Cover | *F | w/ Toyota Safety Sense P |
| *1 | AIR CONDITIONING THERMISTOR ASSEMBLY | *2 | INNER REAR VIEW MIRROR STAY HOLDER COVER |
| *3 | NO. 1 FORWARD RECOGNITION COVER | *4 | NO. 1 ROOM LIGHT ASSEMBLY |
| *5 | NO. 2 FORWARD RECOGNITION COVER | *6 | RAIN SENSOR |
| *7 | RAIN SENSOR COVER | *8 | ROOF CONSOLE BOX ASSEMBLY |
| *9 | SENSOR COVER | *10 | NO. 1 ROOM LIGHT HOUSING |
| *11 | NO. 1 ROOM LIGHT LENS | - | - |

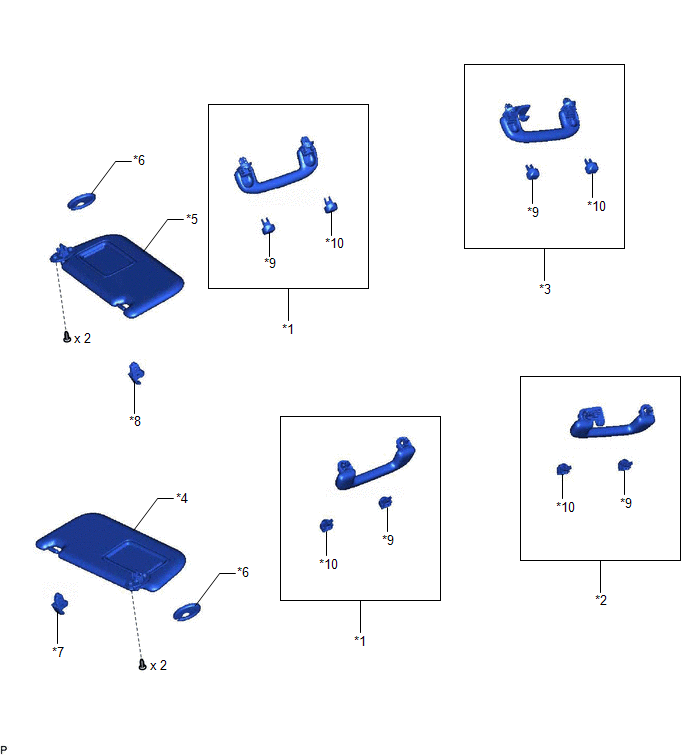

| *1 | ASSIST GRIP ASSEMBLY | *2 | REAR ASSIST GRIP ASSEMBLY LH |
| *3 | REAR ASSIST GRIP ASSEMBLY RH | *4 | VISOR ASSEMBLY LH |
| *5 | VISOR ASSEMBLY RH | *6 | VISOR BRACKET COVER |
| *7 | VISOR HOLDER LH | *8 | VISOR HOLDER RH |
| *9 | ASSIST GRIP COVER LH | *10 | ASSIST GRIP COVER RH |

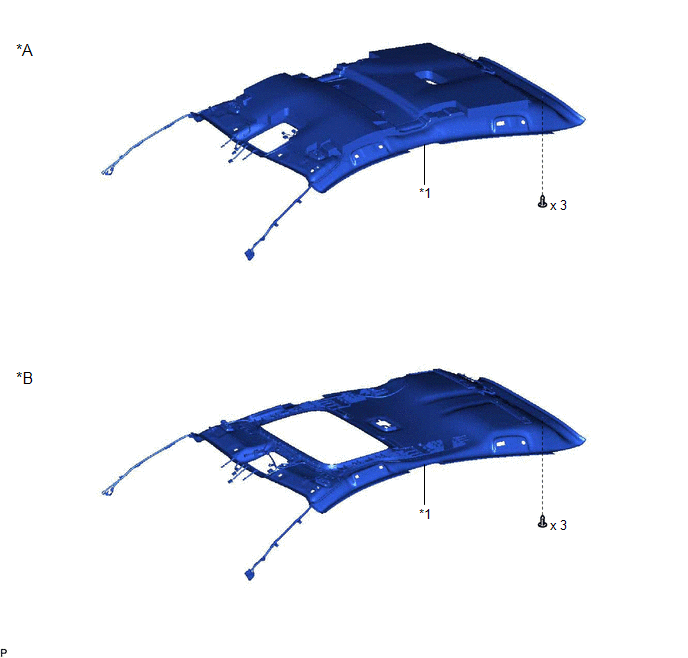

| *A | w/o Sliding Roof | *B | w/ Sliding Roof |
| *1 | ROOF HEADLINING ASSEMBLY | - | - |

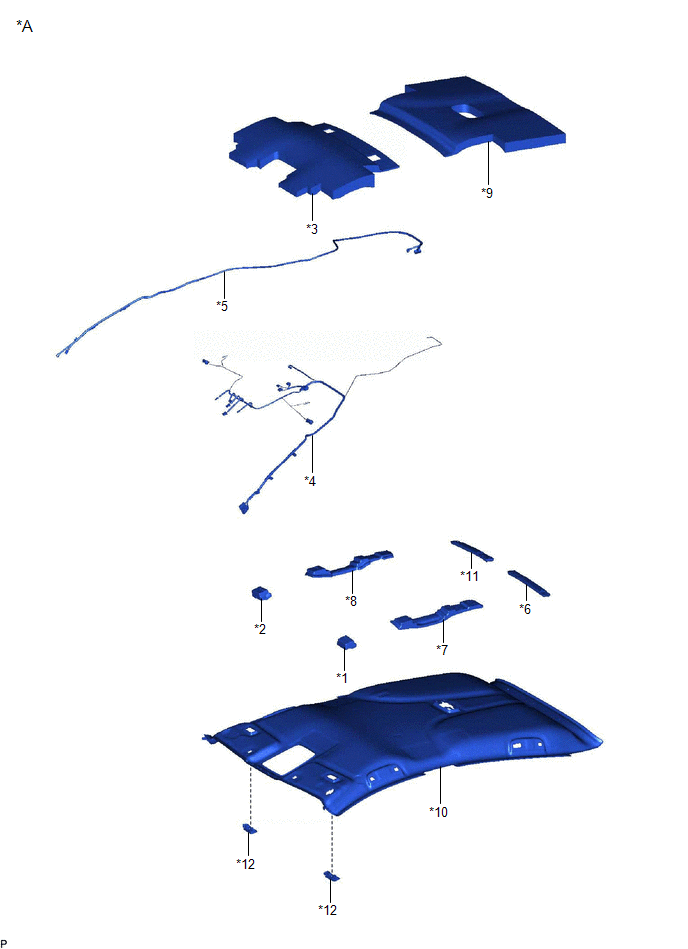

| *A | w/o Sliding Roof | - | - |
| *1 | FRONT SIDE RAIL SPACER LH | *2 | FRONT SIDE RAIL SPACER RH |
| *3 | NO. 1 ROOF SILENCER PAD | *4 | NO. 1 ROOF WIRE |
| *5 | NO. 2 ANTENNA CORD SUB-ASSEMBLY | *6 | NO. 2 ROOF HEADLINING PAD |
| *7 | NO. 2 ROOF HEADLINING SET PLATE LH | *8 | NO. 2 ROOF HEADLINING SET PLATE RH |
| *9 | NO. 2 ROOF SILENCER PAD | *10 | ROOF HEADLINING ASSEMBLY |
| *11 | ROOF HEADLINING PAD | *12 | VANITY LIGHT ASSEMBLY |

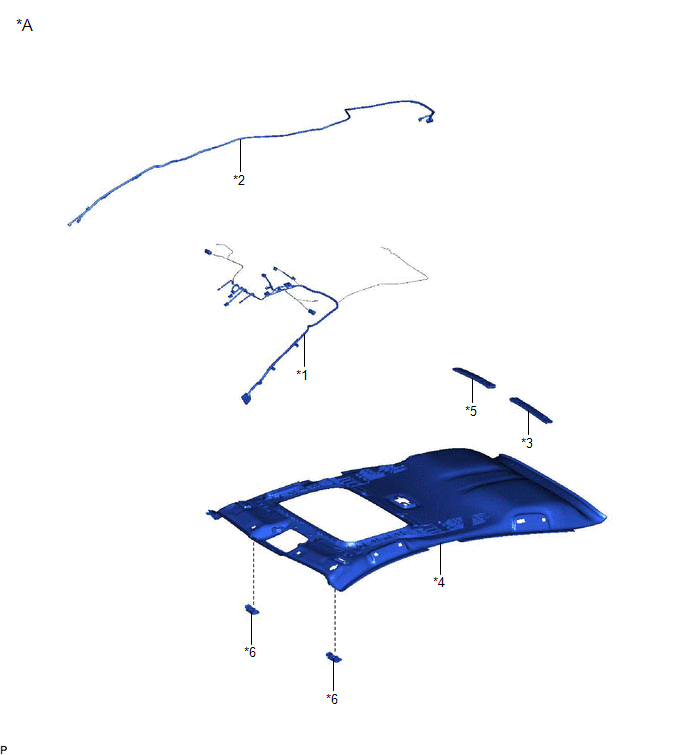

| *A | w/ Sliding Roof | - | - |
| *1 | NO. 1 ROOF WIRE | *2 | NO. 2 ANTENNA CORD SUB-ASSEMBLY |
| *3 | NO. 2 ROOF HEADLINING PAD | *4 | ROOF HEADLINING ASSEMBLY |
| *5 | ROOF HEADLINING PAD | *6 | VANITY LIGHT ASSEMBLY |
