Removal [11/2015 - ]: Procedure

  1. REMOVE REAR DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 18 [11/2015 - 12/2018] , or refer to PROCEDURE - Step 21 [12/2018 - 07/2020] , or refer to PROCEDURE - Step 23 [07/2020 -]

  2. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP

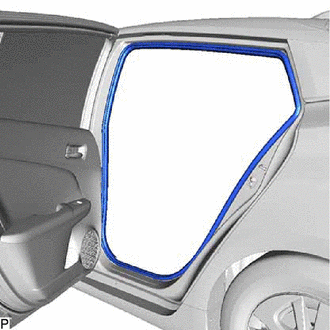

    1. Remove the rear door opening trim weatherstrip.
      GTY552508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
