Adjustment [11/2015 - ]: Procedure

INSPECT BACK DOOR

Check that the clearance measurements of areas a through l are within each standard range.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

STANDARD CLEARANCE

Area	Measurement	Area	Measurement
a	4.6 to 9.6 mm (0.181 to 0.378 in.)	b	-0.5 to 4.5 mm (-0.0197 to 0.177 in.)
c	4.6 to 9.6 mm (0.181 to 0.378 in.)	d	-0.5 to 4.5 mm (-0.0197 to 0.177 in.)
e	4.6 to 9.6 mm (0.181 to 0.378 in.)	f	1.0 to 6.0 mm (0.0394 to 0.236 in.)
g	3.85 to 7.85 mm (0.152 to 0.309 in.)	h	3.5 to 8.5 mm (0.138 to 0.335 in.)
i	4.0 to 9.0 mm (0.157 to 0.354 in.)	j	4.0 to 9.0 mm (0.157 to 0.354 in.)
k	5.0 to 10.0 mm (0.197 to 0.394 in.)	l	4.35 to 8.35 mm (0.171 to 0.329 in.)

REMOVE DECK TRIM SERVICE HOLE COVER

Disengage the 4 claws to remove the deck trim service hole cover as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

ADJUST BACK DOOR

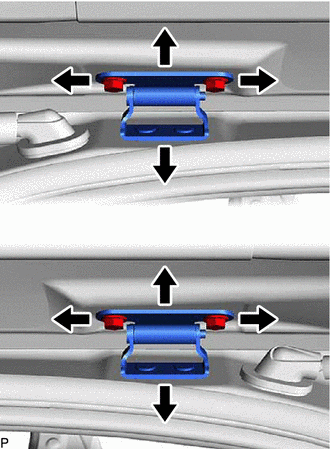

Loosen the 4 hinge bolts on the back door and adjust the back door position.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Tighten the 4 hinge bolts on the back door after adjustment.
Torque: 19 N.m (194 kgf.cm, 14 ft./lbf)

Using a T40 "TORX" socket wrench, slightly loosen the 2 striker mounting screws.

Using a brass bar and a hammer, hit the striker to adjust its position.
Using a T40 "TORX" socket wrench, tighten the 2 striker mounting screws after adjustment.
Torque: 23 N.m (235 kgf.cm, 17 ft./lbf)

INSTALL DECK TRIM SERVICE HOLE COVER

Engage the 4 claws to install the deck trim service hole cover as shown in the illustration.

Install in this Direction
