Removal [11/2015 -]: Procedure

REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY
Refer to PROCEDURE - Step 6 [11/2015 - 11/2017] , or refer to PROCEDURE - Step 6 [11/2017 - 12/2018] , or refer to PROCEDURE - Step 6 [12/2018 - 08/2019] , or refer to PROCEDURE - Step 6 [08/2019 - 07/2020] , or refer to PROCEDURE - Step 6 [07/2020 -]

REMOVE LIGHT CONTROL RHEOSTAT (COMBINATION SWITCH ASSEMBLY)

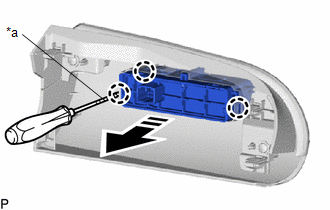

Using a screwdriver, disengage the 3 claws and remove the light control rheostat (combination switch assembly) as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Protective Tape
	Remove in this Direction

HINT:

Tape the screwdriver tip before use.
